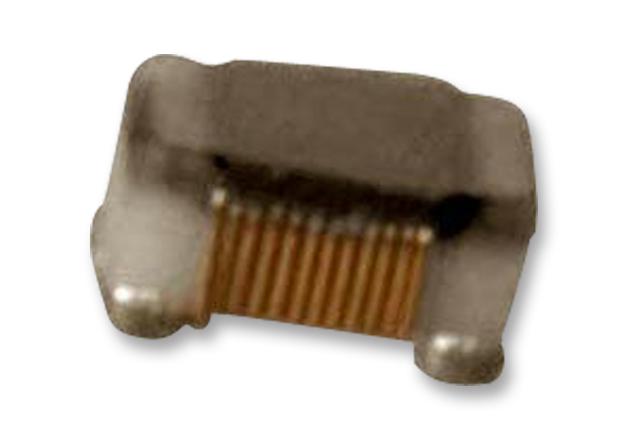

Murata LQW2BAS56NJ00L RF Inductor
This high-quality inductor from Murata's series offers excellent inductance stability and low resistance, suitable for compact electronic circuits and RF applications. It features a size of 0805 (2015), with inductance of 56nH and a tolerance of ±5%. Suitable for high-frequency operation with a self-resonance frequency of 4600MHz, it boasts a maximum DC resistance of 0.340 ohms, and a rated current of 50mA. Reliability, compact design, and precise specifications make it ideal for modern electronic assemblies requiring stable inductance performance.
Murata LQW2BAS56NJ00L RF Inductor Specifications:
- Size: 0805 (2015) package, 2.0 mm x 1.5 mm x 1.4 mm
- Inductance: 56nH with ±5% tolerance
- Inductance Test Frequency: 200MHz
- Max. DC Resistance: 0.340 ohms
- Self Resonance Frequency: 4600MHz
- Rated Current: 50mA (based on temperature rise)
- Operating Temperature Range: -55°C to +125°C
- Series: LQW2BAS_00
- Q Factor: ≥60 at 500MHz
- Frequency Range: up to GHz range for RF applications
Buy the Murata Series RF Inductor: 56nH Small High-Frequency Coil LQW2BAS56NJ00
Enhance your electronic designs with the Murata RF Inductor featuring a 56nH inductance in a compact 0805 package. It offers reliable high-frequency performance, low DC resistance, and a high self-resonance frequency suitable for RF circuits and signal filtering. Easy to incorporate into tight spaces, this inductance component ensures stability, durability, and precision. Perfect for modern communication and electronic systems that demand high performance and compact design. Order online today to ensure fast delivery and quality assurance.
Buy Murata LQW2BAS56NJ00 high-quality RF inductor now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy Murata LQW2BAS56NJ00L?
You can click on the BUY or RFQ button to purchase LQW2BAS56NJ00L from an authorized Murata distributor.
How do I troubleshoot issues or seek technical support for part LQW2BAS56NJ00L?
You can download the LQW2BAS56NJ00L datasheet or visit the Murata website for support.
Who is the manufacturer of LQW2BAS56NJ00L?
Murata
