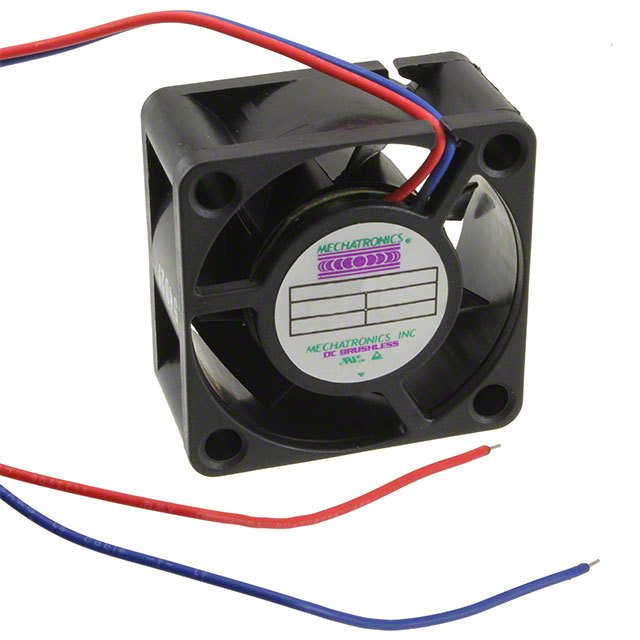

Mechatronics G4020H24BRSREM DC Brushless Motor Fan
The MECHATRONICS G4020H24B-RSR-EM is a high-performance brushless DC motor fan engineered for a variety of industrial and commercial applications. Its compact size (40 x 40 x 20 mm) and robust construction using UL94V-0 PBT materials ensure durability and reliability. The motor offers thermal protection, and optional features like tachometer output and locked rotor alarm signal provide enhanced control and monitoring capabilities. Ideal for use in electronics cooling, ventilation systems, and other applications demanding precise airflow and quiet operation.
Mechatronics G4020H24BRSREM DC Brushless Motor Fan Specifications:
- Series: G4020
- Size: 40 x 40 x 20 mm (1.57 x 1.57 x 0.79 inches)
- Construction: UL94V-0 PBT impeller & frame
- Bearing_option: ball bearing or sleeve
- Connection: AWG 26, UL1007 lead wires
- Frame: ribbed
- Protection: thermal
- Options: tachometer output or locked rotor alarm signal; encapsulated motor
- Air_Volume_Q: M [[3]] /MIN
- Static_Pressure_MM_Water: Range from 0 to 0.40
- Voltage_Rated_V: 5/12/24
- Current_mA: Ranges from 50 to 440
- Revolution_RPM: Ranges from 4000 to 8000
- Air_Volume_CFM: Ranges from 0.18 to 0.33
- Static_Pressure_INCH20: Ranges from 1.74 to 5.81
- Sound_Noise_dbA: Ranges from 21 to 32
Buy the G4020H24B-RSR-EM MECHATRONICS DC Brushless Motor Fan | myMectronic
Purchase the MECHATRONICS G4020H24B-RSR-EM securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Mechatronics G4020H24BRSREM?
You can click on the BUY or RFQ button to purchase G4020H24BRSREM from an authorized Mechatronics distributor.
How do I troubleshoot issues or seek technical support for part G4020H24BRSREM?
You can download the G4020H24BRSREM datasheet or visit the Mechatronics website for support.
Who is the manufacturer of G4020H24BRSREM?
Mechatronics
