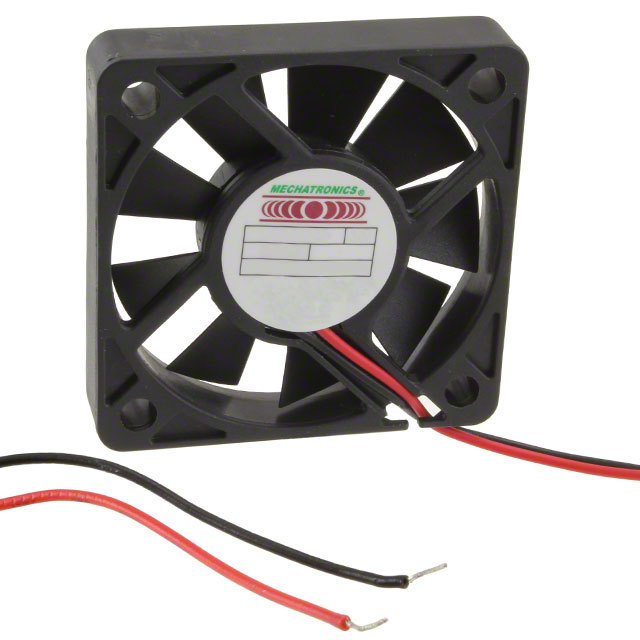

Mechatronics M5010E05CRSR DC Axial Fan
The MECHATRONICS M5010 series DC axial fans are engineered to provide reliable and efficient cooling for a wide range of industrial applications. These fans are available in various models with different voltage and airflow ratings to meet specific cooling requirements. Constructed with a UL94V-0 PBT impeller and frame, and offering options for ball or sleeve bearings, the M5010 series ensures durability and long-term performance. The ribbed frame design enhances structural integrity, while the impedance protection safeguards the fan from damage. With options like tachometer output signal, these fans provide versatility for system monitoring and control.
Mechatronics M5010E05CRSR DC Axial Fan Specifications:
- Dimensions: 50 x 50 x 10 mm (1.97 x 1.97 x 0.39 inches)
- Rated Voltage: 5V or 12V
- Operating Voltage: 3-6.0V or 7-13.8V
- Rated Current: 60mA - 150mA (depending on model)
- Speed: 4,000 - 6,000 RPM (depending on model)
- Air Volume: 0.18 - 0.28 M³/Min (depending on model)
- Static Pressure: 6.36 - 9.89 MM H20 (depending on model)
- Sound Noise: 20 - 28 dBA (depending on model)
- Weight: 24 - 26 g (depending on model)
- Impeller Material: UL94V-0 PBT
- Frame Material: PBT
- Bearing Type: Ball bearing or sleeve bearing
- Connection: AWG 26, UL1007 lead wires
- Frame Design: Ribbed
- Protection: Impedance
- Options: Tachometer output signal
