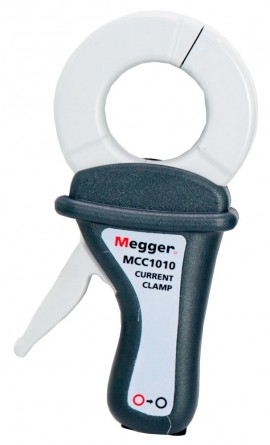

MEGGER 1010516 Current Clamp
The MCC1010 and MVC1010 are high-precision AC current clamps designed to measure currents up to 1000 A with a 1000:1 step-down ratio. They provide accurate, TRMS voltage output signals with phase shift as low as 0.3°, making them suitable for power, energy, and quality analysis. Featuring overvoltage protection and CAT IV 600 V rating, these clamps operate within a frequency range of 15 Hz to 10 kHz and support applications like power analyzers, oscilloscopes, motor testers, and data loggers. Their robust construction allows measurement of cables up to 52 mm diameter in challenging environments, ensuring safety, reliability, and precise current measurement in industrial and electrical systems.
MEGGER 1010516 Current Clamp Specifications:
- Step-down current ratio: 1000:1
- Sensitivity: 1mA/A
- Accuracy of output signal: 0.3% at 1000 A, phase shift <0.3°
- Frequency bandwidth: 15 Hz to 10 kHz
- Maximum continuous current: 1000 A at <500 Hz
- Load impedance: <1Ω
- Output voltage: <28 V peak, electronic limiter
- Conductor diameter: Up to 52 mm
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Weight: 700g
- Dimensions: 45 mm x 110 mm x 218 mm
- Safety Rating: CAT IV 600 V
- Ingress Protection: IP40 with jaws closed
- EMC: IEC 61326-1
- Operating altitude: Up to 2000 m
- Power supply: From measurement instruments with 1 mV/A output
Buy the Megger Series AC Current Clamp: 1010516
Purchase the Megger MCC1010 high-accuracy AC current clamp online today to enjoy reliable, safe, and precise measurement of currents up to 1000 A. Designed with advanced magnetic cores for excellent accuracy and low phase shift, this clamp is suitable for power quality analysis, motor testing, and data logging. It features overvoltage protection, CAT IV 600 V safety rating, and supports cables up to 52 mm in diameter. Invest in this robust, easy-to-use current clamp for your electrical testing needs and ensure safety and precision in every measurement.
Get Megger MCC1010 today—built for precise, safe current measurement and long-lasting durability in demanding electrical environments.
Frequently Asked Questions
Where can I buy MEGGER 1010516?
You can click on the BUY or RFQ button to purchase 1010516 from an authorized MEGGER distributor.
How do I troubleshoot issues or seek technical support for part 1010516?
You can download the 1010516 datasheet or visit the MEGGER website for support.
Who is the manufacturer of 1010516?
MEGGER
