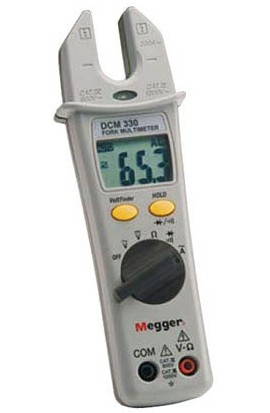

MEGGER DCM330 Digital Multimeter
The Megger DCM330 is a versatile, compact instrument combining multiple measurement functions into a single device. It features AC and DC voltage measurements up to 1000 V, resistance from 0.1 ohms to 20 milliohms, and AC current measurement up to 200 A. The device includes non-contact voltage detection, a continuity buzzer with diode check, and an open-jaw clamp for fast, accurate measurements on single conductors up to 16 mm in diameter. Auto-ranging, a large central knob, and disconnectable test leads enhance ease of use. It is rated CAT III 1000 V and CAT IV 600 V, suitable for fault-finding, load analysis, and maintenance in industrial and domestic wiring contexts, making it a robust tool for field applications.
MEGGER DCM330 Digital Multimeter Specifications:
- AC current measurement: 0-200.0A, 50-60 Hz, 3% +3 digits accuracy, overcurrent protection 400A RMS
- AC/DC voltage measurement: 200V (+1%, +2 digits), 1000V, 50-500Hz, input impedance 2 MΩ (<100 pF), overvoltage protection 1000V
- Resistance measurement: 0.1Ω to 20 MΩ, accuracy 1%-1.9%, overload protection 600V RMS
- Diode check: 1mV ±1.5%, 0.05V; Continuity buzzer: <50Ω, turns off >250Ω, response time 0.25 sec – 1 sec
- Display: 3 1/2 digit LCD, 2000 count, sample rate 1.5/sec, auto-off after 10 min, size 54mm(W) x 193mm(H) x 31mm(D), weight 280g
- Power: 2 AAA batteries, approx. 250 hours, IEC61010-1 1000V CAT III, 600V CAT IV, EMC EN 61326-1, drop-tested 1.2m
Buy the Megger DCM330 – Reliable Digital Multimeter for Industrial Applications
Order the Megger DCM330 online today and enjoy a compact, versatile tool designed for accurate AC/DC voltage, current, resistance measurements, and non-contact voltage detection. This multimeter is ideal for fault finding, installation, maintenance, and troubleshooting across industrial, commercial, and residential applications. With features like auto-ranging, an open-jaw clamp, large LCD display, and robust construction rated CAT III 1000V and CAT IV 600V, it ensures dependable performance in challenging environments. Purchase now for reliable, professional-grade electrical testing at your fingertips.
Get Megger DCM330 today—built for precise electrical measurements and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEGGER DCM330?
You can click on the BUY or RFQ button to purchase DCM330 from an authorized MEGGER distributor.
How do I troubleshoot issues or seek technical support for part DCM330?
You can download the DCM330 datasheet or visit the MEGGER website for support.
Who is the manufacturer of DCM330?
MEGGER
