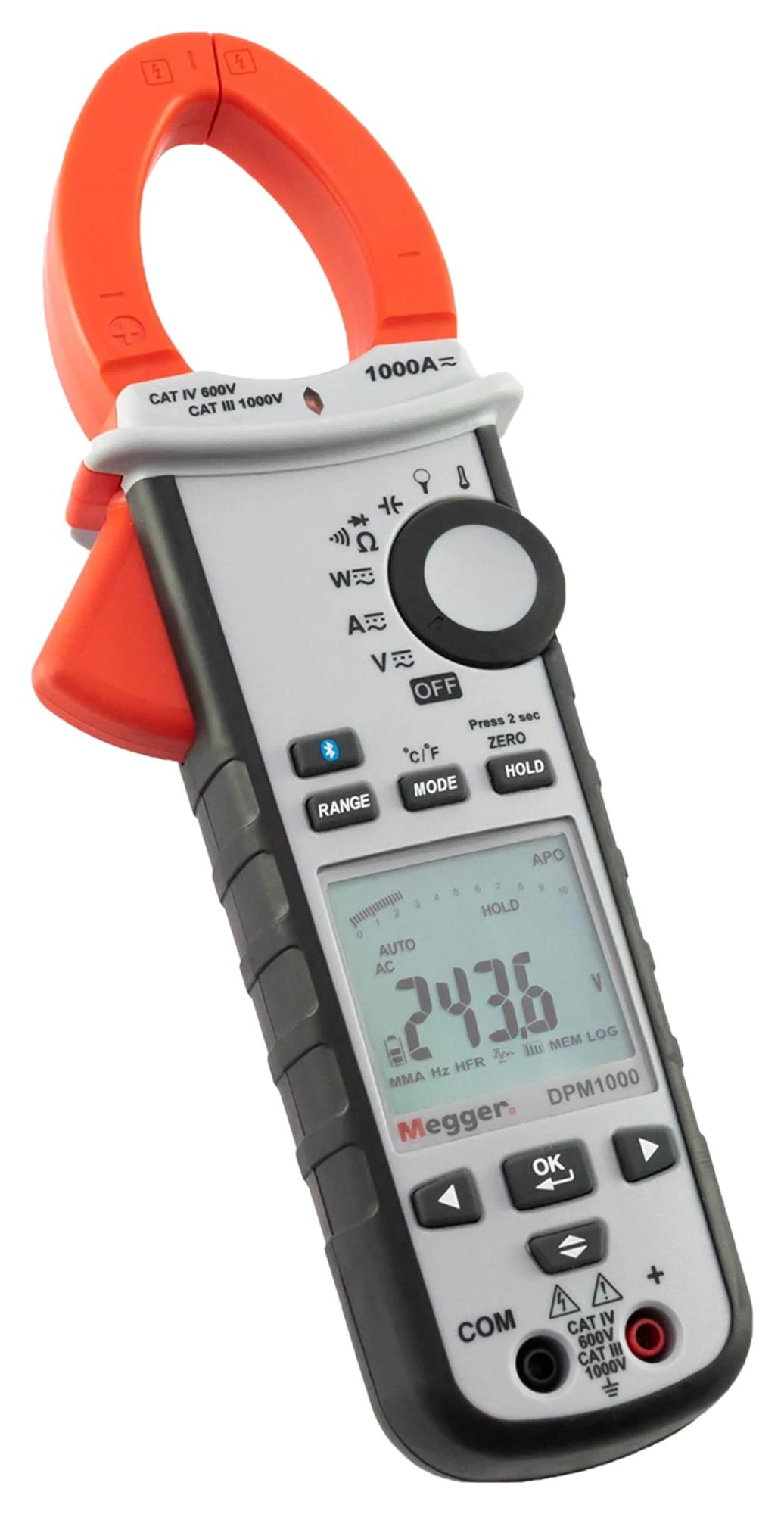

MEGGER DPM1000 Power Clamp Meter
The Megger DPM1000 clamp meter offers precise measurement of currents up to 1000 A AC/DC, voltage up to 1000 V, and features true RMS, non-contact voltage detection, and data logging. It combines power, harmonic, and power factor measurements, ensuring versatile testing for power electronics and maintenance. The unit includes test leads, thermocouple, Bluetooth connectivity, and a large backlit LCD for clear readings. It meets safety standards CAT IV 600V and CAT III 1000V, making it ideal for professionals in electrical and power engineering fields. Compact and easy to use, it supports comprehensive testing and data analysis.
MEGGER DPM1000 Power Clamp Meter Specifications:
- AC/A Range: 100A - 1000A, Resolution: 0.01A, Basic Accuracy: + (1.5% +5d), Conversion Type: True-RMS AC+DC
- ACV Range: 100V~1000V, Resolution: 0.01V, Basic Accuracy: + (1.5%+5d), Input Impedance: 3.5MQ, Overload Protection: 1000V rms
- DCA Range: 100A - 1000A, Resolution: 0.01A, Basic Accuracy: + (1.5% +5d)
- DCV Range: 100V~1000V, Resolution: 0.01V, Basic Accuracy: + (0.7%+2d), Overload Protection: 1000V rms
- Power measurement: 10KW~ 1MW, Resolution: 1W, Power Factor: -1.00 ~ 1.00, Resolution: 0.01, Basic Accuracy: + 5d
- T.H.D: 0.1% ~100%, Resolution: 0.1%, Basic Accuracy: + (3.0%+10d)
- Harmonics: 1st to 25th harmonic, Resistance: 1kQ - 100kQ, Resolution: 0.010, Basic Accuracy: + (1.0% + Sdgt)
- Capacitance: 4uF - 4000uF, Resolution: 1nF, Basic Accuracy: + (1.9%+8d), Overload Protection: 1000V rms
- Frequency: 20.00Hz ~ 10.00KHz, Resolution: 0.01Hz, Accuracy: + 0.5%+3d
- Temperature: -58°F ~ 1832°F, Resolution: 32.2°F, Accuracy: + (1.0% + 37.4°F), Overload Protection: 1000V rms
- Size: 103mm(W) x 258mm(L) x 55mm(H); Weight: 600g with battery
- Battery: 6 x AAA 1.5V, battery life: approximately 50 hours
- Standards: IEC/EN 61243-3:2014, IEC 61010-1, UL61010 CAT IV 600V, CAT III 1000V
- Maximum conductor size: 40mm, Maximum busbar size: 61 x 12mm
Buy the Megger Series DPM1000 Clamp Meter: DPM1000
Purchase the Megger DPM1000 clamp meter online today to benefit from its advanced features including true RMS measurements, Bluetooth data transfer, comprehensive current, voltage, harmonic, and power testing. Its rugged design, safety compliance with CAT IV 600V and CAT III 1000V standards, and ease of use make it ideal for electrical engineers and power technicians. With included test leads, thermocouple, and carrying case, this versatile device ensures precise diagnostics in power quality, electronics troubleshooting, and maintenance tasks. Get yours now for reliable, professional-grade electrical measurements.
Order your Megger Series DPM1000 clamp meter today and enjoy accurate, multi-function power testing for professional electrical maintenance and diagnostics.
