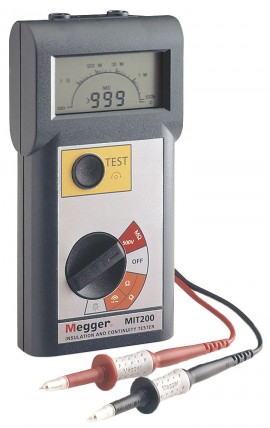

MEGGER MIT200 Insulation Continuity Tester
The Megger MIT200 Digital/Analog Insulation and Continuity Tester is a compact, durable device suitable for electrical testing in various industrial and domestic applications. It features a combination of digital readout and analog display using Megger's patented DART technology, providing clear and accurate measurements of insulation resistance up to 1000 MΩ and continuity testing with 0.01 Ω resolution at currents exceeding 200 mA. The instrument offers automatic testing, live circuit voltage detection, and safety features including test inhibit for circuits over 25 V, automatic power-off, and a continuity buzzer with a 2 Ω threshold for rapid circuit identification. Designed with a tough ABS housing, it operates with 6 AA batteries (alkaline or NiMH) and meets international safety standards such as IEC 61010 and EN61557, suitable for use up to 600 V CATIII. The package includes a robust carrying case and test leads, making it ideal for testing transformers, motors, wiring, and appliances in industrial, commercial, and residential settings.
MEGGER MIT200 Insulation Continuity Tester Specifications:
- Nominal test voltage: 250 V, 500 V, 1000 V (d.c.)
- Measuring range for insulation: 10 kΩ to 1000 MΩ
- Insulation resistance measurement accuracy: 3% of reading +2 digits up to 10 MΩ, 5% up to 100 MΩ, 30% up to 1000 MΩ
- Short circuit current: 205 mA ±10 mA
- Continuity measurement range: 0.010 Ω to 100.0 Ω
- Continuity accuracy: ±3% +2 digits for 0.019 to 9.99 Ω
- Display: Digital and combined analog arc
- Battery: 6 x 1.5 V AA cells (alkaline or NiMH rechargeable)
- Battery life: Approximately 3000 tests
- Operating temperature: -10°C to +55°C
- Storage temperature: -20°C to +65°C
- Ingress protection: IP40
- Safety standards: IEC 61010, EN 61557, CAT III 600 V
- Dimensions: 195 x 98 x 40 mm
- Weight: Approximately 550 g
Buy the Megger Series MIT200 Insulation and Continuity Tester: MIT200
Purchase the Megger MIT200 insulation and continuity tester online today and enjoy a compact, durable instrument designed for accurate electrical testing in industrial, commercial, and residential environments. With combined digital and analog display, auto-range, and safe operation up to 600 V CAT III, this tester provides reliable insulation resistance measurements up to 1000 MΩ and precise continuity testing with 0.01 Ω resolution. Its lightweight and robust design, along with included test leads and case, make it an essential tool for electricians, technicians, and maintenance professionals seeking dependable, high-quality testing equipment for everyday use.
Order your Megger Series MIT200 insulation and continuity tester today and equip yourself with a reliable tool for industrial and residential electrical testing.
