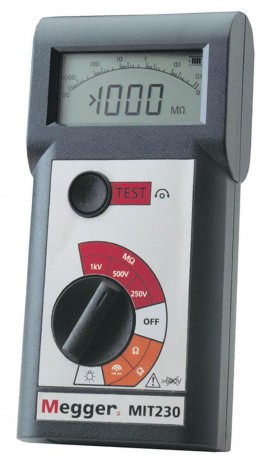

MEGGER MIT230 Insulation and Continuity Tester
The Megger MIT230 is a compact and durable insulation and continuity tester ideal for electrical testing in industrial and maintenance settings. It features multi-voltage insulation testing up to 1000 MΩ with both digital and analog display readings using Megger's patented DART technology for precise measurement. The device performs automatic continuity testing at 200 mA, includes a buzzer for quick circuit identification, and supports alkaline or rechargeable batteries with automatic low battery warning and auto power-down. Safety features include live circuit voltage detection, test inhibit for circuits over 50 V, and compliance with IEC 61010 and EN61557 standards, making it suitable for testing transformers, motors, switchgear, appliances, and wiring systems in challenging environments.
MEGGER MIT230 Insulation and Continuity Tester Specifications:
- Test voltages: 250 V, 500 V, 1000 V (d.c.)
- Measuring range: 10 kΩ - 1000 MO
- Display: Digital and analog with DART technology
- Continuity testing: 0.010 to 100.0 Ω, short circuit current over 200 mA
- Insulation resistance: up to 1000 MΩ, auto discharge, auto ranging
- Battery: 6 x 1.5 V alkaline or NiMH rechargeable cells, with low battery warning
- Operating temperature: -10°C to +55°C
- Dimensions: 195 x 98 x 40 mm (7.7 x 3.9 x 1.6 inches)
- Weight: approximately 550 g
- Safety: IEC 61010, EN 61557, CAT III 600 V, live circuit detection, test inhibit over 50 V
Buy the Megger MIT230 – Reliable Insulation and Continuity Tester for Industrial Applications
Get the Megger MIT230 insulation and continuity tester today for your electrical maintenance tasks. Compact, durable, and designed for accuracy, it features multi-voltage testing up to 1000 MΩ, digital and analog displays, automatic continuity testing, and advanced safety features. Ideal for professionals working in industrial, commercial, and domestic environments, it supports alkaline or rechargeable batteries with automatic low battery warning and auto power-down. Trust MIT230 for reliable, safe, and efficient testing of transformers, motors, switchgear, appliances, and wiring systems, ensuring compliance and operational safety.
Buy Megger MIT230 now and experience unmatched reliability, safety, and performance for electrical testing and maintenance projects.
