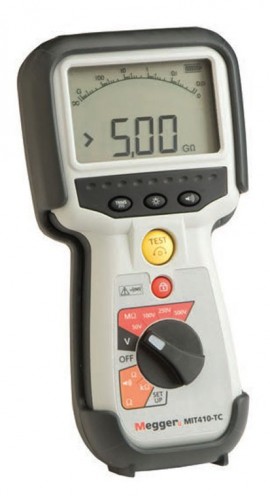

MEGGER MIT410TC3 Insulation Resistance Tester
The Megger MIT410/TC3 provides rapid, highly accurate insulation testing in less than three seconds, with automatic detection of continuity and multiple testing modes. It features automatic current reversal to cancel out electromagnetic interference, ensuring precise results. The device utilizes four-terminal measurement techniques to eliminate lead resistance errors and can automatically identify continuity in potential and control circuits, preventing false readings. Its noise detection capability enhances measurement reliability. Compact, lightweight, and portable, the tester’s bright LED display facilitates operation in low-light spaces, powered by rechargeable NiMH batteries for extended field use.
MEGGER MIT410TC3 Insulation Resistance Tester Specifications:
- Insulation Test Voltage: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation Resistance Range: Up to 50 GΩ (MIT410), Up to 200 GΩ (MIT430)
- Accuracy: ±3% ±2 digits, 0.2% per GΩ
- Maximum Voltage Measurement: 600 V DC/AC with ±2% accuracy
- Continuity Measurement: 0.01 Ω to 99.9 Ω, accuracy ±3% ±2 digits
- Test Current: 1 mA (at minimum), short circuit current 2 mA max
- Display: Bright LED, dual digital readout, analog arc
- Battery: Rechargeable NiMH cells, approximately 100 insulation tests at 5 sec ON/55 sec OFF cycle
- Dimensions: 220 x 92 x 50 mm (8.66 x 3.63 x 1.97 inches)
- Weight: 590 g (instrument), 775 g with boot
- Protection: IP54 rated, dust and splash resistant
- Safety Rating: CAT IV 600 V
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +70°C
- Environmental: Humidity up to 90% RH at 40°C, altitude up to 2000 m
- Certifications: EN 61010-1, IEC 61326, CE compliant
Buy the Megger Series Insulation Resistance Tester: MIT410TC3
Purchase the Megger MIT410TC3 insulation resistance tester online today and enjoy fast, accurate measurements with automatic continuity detection. Designed for electrical, telecommunications, and industrial applications, it offers rapid testing with four-terminal measurement techniques to eliminate lead resistance errors. The device features a bright LED display for easy reading in low-light conditions, rechargeable NiMH batteries for extended use, and robust IP54 protection for durability. Whether for professional field testing or on-site inspections, this lightweight and portable tester ensures reliable results every time.
Buy Megger MIT410TC3 now and experience unmatched reliability and high-precision insulation testing in the field.
