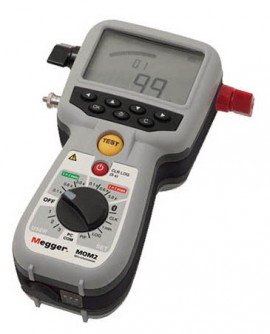

MEGGER MOM2 High-current resistance tester
The Megger MOM2 offers a high-current resistance measurement solution designed for electrical testing applications. It delivers up to 240 A to accurately measure resistance of high-current connections. The device features DualGround technology, ensuring both sides of the test object remain grounded during testing for enhanced safety, efficiency, and quicker workflows—particularly useful in utility and switchgear maintenance where equipment cannot be fully de-energized. The MOM2 automatically ranges from 1 microohm to 1000 milliohms, utilizing ultra capacitor technology for high current generation. It can store up to 190 test results and transfers data via Bluetooth to a PC. Supplied with Kelvin clamps and probes for 4-wire Kelvin testing, the instrument is handheld, portable, weighs only 2.2 lbs (1 kg), and is powered by rechargeable batteries. It complies with IEEE and IEC standards. Typical applications include testing circuit breakers, bus-bars, switches, disconnecting devices, safety grounds, welding points, fuses, and cables. The device features an easy-to-use front panel with current terminals, display, ground terminal, navigation keys, test button, power toggle, and connectors for sense leads and charger. Its innovative DualGround technology supports safe, fast testing with both sides grounded throughout the process, reducing testing time and increasing safety in the field.
MEGGER MOM2 High-current resistance tester Specifications:
- Measurement Range: 1 microohm to 1000 milliohms
- Current Output: Up to 240 A
- Display: Digital with analogue arc for capacitor charge level
- Power Supply: Rechargeable NiMH batteries, 5 x AA 2700 mAh, recharge <12 hours
- Dimensions: 217 x 104 x 72 mm (8.5 x 4.1 x 2.8 inches)
- Weight: 1 kg (2.2 lbs) instrument only, 5 kg (11 lbs) with accessories
- Environmental Conditions: -20°C to +50°C operation, 40°C to +70°C storage, 5%-95% RH
- Standards: IEC 60068-2-27 shock, IEC 60068-2-6 vibration, IEC IP4 enclosure, COMPLIES with IEEE and IEC
- Battery: 2700 mAh NiMH, recharge <12 hours, battery life >10 years
- Connectivity: Bluetooth for data transfer, PC communication via MOM2 Win software
- Kelvin Testing: Includes Kelvin clamps and probes for high-accuracy 4-wire tests
- Additional Features: Multi measurement storage (up to 190), pass/fail criteria, calibration capability, field calibration, real-time clock
Buy the Buy Megger MOM2 Micro-ohmmeter Part Number MOM2 Online
Order the Megger MOM2 online and enjoy a reliable resistance measurement device with advanced safety features like DualGround technology. Its portable, handheld design makes it ideal for field use, offering up to 240 A current output, Bluetooth data transfer, and precise 4-wire Kelvin testing with Kelvin clamps and probes. The device's versatile measurement range from 1 microohm to 1000 milliohms enables testing of circuit breakers, bus-bars, safety grounds, and high-current links efficiently. With easy data logging, calibration, and compliance with international standards, the MOM2 is perfect for maintenance, troubleshooting, and ensuring electrical system safety across industries. Purchase online now for fast, accurate, and safe high-current resistance testing.
Get Megger MOM2 today—designed for precise high-current resistance testing in electrical maintenance and switchgear applications.
