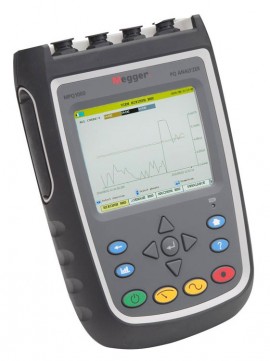

MEGGER MPQ1000 Power Quality Analyzer
The Megger MPQ1000 Power Quality Analyzer is a versatile handheld device designed for troubleshooting, compliance testing, and energy audits. It features automatic CT recognition, connection verification, and supports measurements of RMS, DC voltage/current, power, harmonics, transients, flicker, phase angles, and more. Its broad application includes substation monitoring, motor troubleshooting, renewable energy analysis, and load studies. The device offers large storage via a removable SD card, measures up to 1000 V AC/DC, and is safe with CAT IV 600 V certification. User-friendly software enables quick analysis without licensing requirements, making it ideal for utility, industrial, and service provider use.
MEGGER MPQ1000 Power Quality Analyzer Specifications:
- Input Power: 120/240 V, 50/60 Hz with international power adapter support
- Battery: NiMH, up to 8 hours discharge, 3 hours recharge
- Data Storage: External SD card (32GB max)
- Display: 11.5 cm x 8.5 cm color VGA, 640 x 480 pixels, refresh rate 1-3 sec
- Measurement Range: Up to 1000 V AC/DC, CAT IV @ 600 V, CAT III @ 1000 V
- Environmental: Operating -20°C to 50°C, Storage -30°C to 60°C, humidity 0-95% non-condensing
- Communication: USB, Ethernet, USB stick, SD card
- Case: 1P54 enclosure with Kensington lock
- Performance: IEC 61000-4-30 Class A compliance, transient detection to 1 sec, phase shift measurement down to 1°, multiple waveform capturing
- Supported Applications: Power quality testing, load analysis, fault detection, motor starting inrush, renewable energy, substation monitoring
Buy the Megger Series MPQ1000 Power Quality Analyzer: MPQ1000
Purchase the Megger MPQ1000 Power Quality Analyzer online today and enhance your electrical testing capabilities. Its automatic coil transformer recognition, broad measurement parameters, large SD card storage, and safety certification make it ideal for utility, industrial, and service providers. Whether troubleshooting motor inrush, monitoring substations, or conducting compliance tests, the MPQ1000 simplifies complex tasks with its intuitive interface and comprehensive data analysis. Order now to leverage this advanced, rugged device for accurate, reliable power quality assessments and operational efficiency.
Buy Megger MPQ1000 now and experience unmatched reliability and performance in power quality analysis and troubleshooting.
