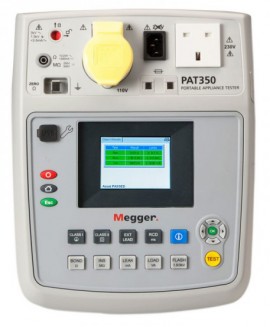

MEGGER PAT350UK Portable Appliance Tester
The Megger PAT350-UK is a versatile portable appliance tester designed for high-speed testing in manufacturing, tool hire, and service environments. It features advanced functions including flash testing at 1.5 kV and 3 kV, bond testing at 25 A, 10 A, and 200 mA, and comprehensive leakage tests such as differential, touch, and substitute methods. Equipped with a full color display, it supports testing of portable RCDs, extension leads, and electrical tools. Both manual and automatic modes are available, with pre-programmed test sequences for Class I, Class II, and extension leads, ensuring compliance with IEC and DIN standards for safe, reliable testing.
MEGGER PAT350UK Portable Appliance Tester Specifications:
- Electrical supply range: 110 V and 230 V ±10%
- Supply measurement: Voltage ±2% <1V; Frequency ±1% <0.1Hz
- Bond test open circuit voltage: 9 V AC ±10%; current: 10 A, 25 A with ±20% tolerance
- Earth bond resistance resolution: 10 mQ from 0 to 1.99 Q
- Continuity test voltage: 4 V DC; current: 200 mA; resistance: ±5% within 0 to 19.99 Q
- Insulation test voltage: 250 V DC and 500 V DC with ±25% open circuit; resistance resolution: 0.01 MQ from 0.10 to 99.99 MΩ
- Leakage test current: 0 to 19.99 mA, accuracy ±5%, resolution 0.01 mA
- Touch current test: 0 to 10 mA, accuracy ±5%, resolution 0.01 mA
- Operational power measurement: 0 to 3.99 KVA, accuracy varies with load
- Flash test voltage: 1500 V AC for Class I, 3000 V AC for Class II, current <3.5 mA
- Portable RCD test voltage: 110 V/230 V; trip time resolution: 0.1 ms
- Dimensions: 175mm H x 320mm D x 250mm W; with case: 190mm H x 400mm D x 290mm W
- Weight: PAT320 - 4.5 kg, PAT350 - 5.0 kg
- Operating temperature: 10°C to 50°C; Storage: -20°C to 60°C
- Compliance: IEC 61010-1:2001; creepage and clearance for Category II, 300 V earth
Buy the Buy Megger PAT350-UK Portable Appliance Tester with Flash Test Online
Purchase the Megger PAT350-UK online today to ensure reliable and comprehensive testing of electrical equipment. Featuring advanced flash testing up to 3 kV, bond testing at 25 A, 10 A, and 200 mA, it supports automatic and manual testing modes for efficient inspection. Its bright full color display provides easy-to-read results. Ideal for manufacturing, tool hire, and safety compliance, the PAT350-UK guarantees professional-grade testing for electrical safety, helping you meet safety standards quickly and confidently with a user-friendly interface and robust features.
Order your Megger PAT350-UK portable appliance tester today and enhance your electrical safety testing with advanced flash and leakage measurement capabilities.
