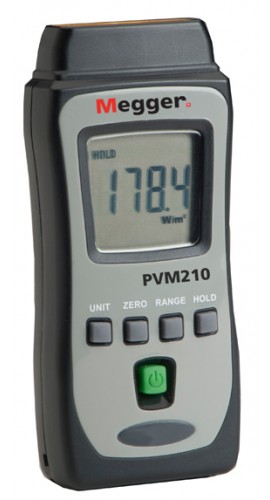

MEGGER PVM210 Irradiance Meter
The Megger PVM210 provides fast, accurate solar power measurements with an easy-to-read LCD display and measurement hold feature, ideal for optimizing photovoltaic panel positioning. It measures solar irradiance up to 1999 W/m² with ±10 W/m² accuracy in sunlight, helping engineers determine the best panel placement and perform short circuit current calculations using an ammeter. Its compact, pocket-sized design features a standard camera mount for precise positioning, a battery life of approximately 50 hours, and a universal mount. Suitable for use in outdoor solar PV systems, it enhances efficient solar site assessments and troubleshooting.
MEGGER PVM210 Irradiance Meter Specifications:
- Display: 3% digits LCD, maximum reading 3999
- Range: 1999 W/m² / 634 BTU/(ft·h)
- Accuracy: within +10 W/m² or +5%, whichever is greater
- Measurement sampling time: approx. 0.2 seconds
- Angular accuracy: ±5% for angles below 60°
- Operating temperature: 5°C to 40°C with below 80% RH
- Storage temperature: -10°C to 60°C, below 70% RH
- Dimensions: 134 mm (H) x 48 mm (W) x 27 mm (D)
- Weight: approximately 120 grams
- Battery life: approx. 50 hours
- Power supply: 2x AAA 15V batteries
- Auto power off: after 15 minutes
- Protection: Includes pouch and calibration certificate
- Additional features: Universal camera mount, measurement hold function
Buy the Megger Series PVM210 Irradiance Meter: PVM210
Purchase the Megger PVM210 online today to ensure precise, quick solar power measurements for photovoltaic panel optimization and troubleshooting. This compact, user-friendly instrument features a clear LCD display, measurement hold, and a standard camera mount for accurate placement on roofs or test sites. With a 1999 W/m² range and ±10 W/m² accuracy, it delivers dependable data for calculating short circuit current and optimizing solar panel performance. Lightweight and battery-powered, it offers up to 50 hours of operation and includes a protective pouch for durability and easy transport.
Order your Megger Series PVM210 irradiance meter today and enhance your solar power assessments with reliable, portable measurement technology.
Frequently Asked Questions
Where can I buy MEGGER PVM210?
You can click on the BUY or RFQ button to purchase PVM210 from an authorized MEGGER distributor.
How do I troubleshoot issues or seek technical support for part PVM210?
You can download the PVM210 datasheet or visit the MEGGER website for support.
Who is the manufacturer of PVM210?
MEGGER
