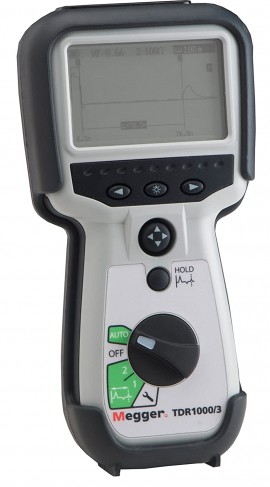

MEGGER TDR10003 Cable Fault Locator
The Megger TDR1000/3 is a handheld time domain reflectometer designed for efficient fault location on metallic cables. It features a trace hold function, ultra-fast pulse for quick fault detection, and automatic setup for ease of use. With an IP54 rating, it withstands tough environments, making it ideal for various field applications. The device supports multiple ranges up to 5 km and offers adjustable velocity factors from 0.2 to 0.99. Its backlit monochrome LCD and dual cursors enhance trace interpretation, while its robust design ensures reliable performance in industrial settings.
MEGGER TDR10003 Cable Fault Locator Specifications:
- Ranges: 10 m to 15,000 ft with options at 10 m, 25 m, 100 m, 250 m, 1000 m, 2500 m, 5000 m
- Accuracy: ±1% of range + pixel at 0.67 VF
- Resolution: 1% of range
- Display: 256 x 128 pixel monochrome LCD with backlight
- Pulse: 5 volts peak to peak into open circuit
- Velocity factor: 0.2 to 0.99 (variable in steps of 0.01)
- Input protection: IEC61010-1 compliant for up to 150 V CAT IV
- Power: Five AA batteries, up to 14 hours operation
- Dimensions: 230 mm x 115 mm x 48 mm
- Weight: 0.6 kg
- Environmental rating: IP54, operating temperature 15°C to +50°C, storage -20°C to 70°C
- Connectors: Two 4 mm safety terminals
- Case material: ABS
Buy the Megger TDR1000/3 – Reliable Cable Fault Location for Industrial Applications
Purchase the Megger TDR1000/3 today and enhance your cable maintenance efficiency with its easy operation, fast fault detection, and durable IP54 design. Ideal for field technicians, this handheld TDR offers precise fault localization to minimize downtime. With automatic setup, trace hold, and adjustable velocity factors, it ensures quick and accurate diagnostics. Equip your team with this reliable device to improve troubleshooting workflows, reduce troubleshooting time, and ensure uninterrupted network performance—available now for seamless online ordering.
Buy Megger TDR1000/3 now and experience unmatched reliability and performance in cable fault detection and network troubleshooting.
