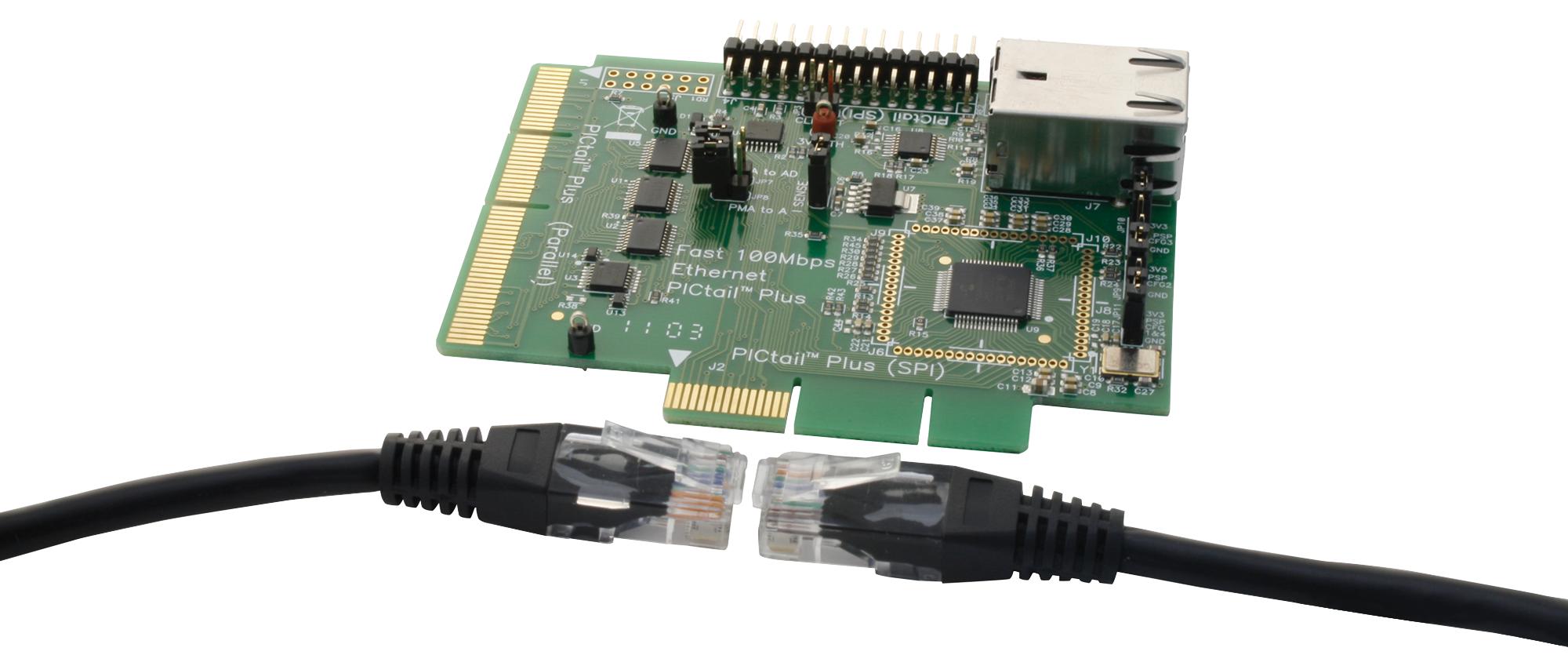

Microchip Technology AC164132 Ethernet Demo Board
The Fast 100 Mbps Ethernet PICtail Plus Daughter Board is designed to evaluate Microchip's ENC624J600 Ethernet controllers. It features a 25 MHz oscillator, integrated magnetic connector, and supports multiple interface modes including SPI and parallel. Compatible with Explorer 16, PIC32 I/O Expansion, PICDEM.net™ 2, and PIC18 Explorer boards, it offers configuration jumpers, current monitoring, Ethernet crossover switches, and a 3.3V LDO regulator with shutdown capability. This versatile demonstration board simplifies Ethernet interface testing and development with preprogrammed MAC addresses and software support for TCP/IP stacks.
Microchip Technology AC164132 Ethernet Demo Board Specifications:
- Supports 10/100 Mbps Ethernet with ENC624J600 controller
- 25 MHz oscillator, integrated magnetic RU-45 connector
- Compatible with Explorer 16, PIC32 I/O Expansion, PICDEM.net 2, PIC18 Explorer
- Multiple interface modes: SPI and parallel (8 and 16-bit)
- Configuration jumpers for PSP modes, clock output, power control, and feature enabling
- 3.3V LDO regulator with shutdown for power management and low sleep current
- Crossover switches for auto-crossover Ethernet cable detection
- Physical dimensions compatible with PICtail Plus standard, easy to insert
- Factory preprogrammed MAC address, software support for Microchip TCP/IP Stack
- Includes current sensing jumper and status LEDs for link and activity indicators
Buy the Microchip Series Ethernet Evaluation Board: AC164132
Enhance your networking development with the Microchip Ethernet Demo Board. This versatile, easy-to-use evaluation platform supports 10/100 Mbps Ethernet controllers, features configurable interface modes, and includes power management options. Compatible with popular development boards like Explorer 16 and PIC32 I/O Expansion, it accelerates your project timelines, simplifies testing, and enhances your engineering workflow. Purchase online today to access comprehensive software support, technical documentation, and get started quickly with your Ethernet network design.
Buy Microchip AC164132 now and experience unmatched reliability and high-performance Ethernet connectivity for your development projects.
Frequently Asked Questions
Where can I buy Microchip Technology AC164132?
You can click on the BUY or RFQ button to purchase AC164132 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AC164132?
You can download the AC164132 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AC164132?
Microchip Technology
