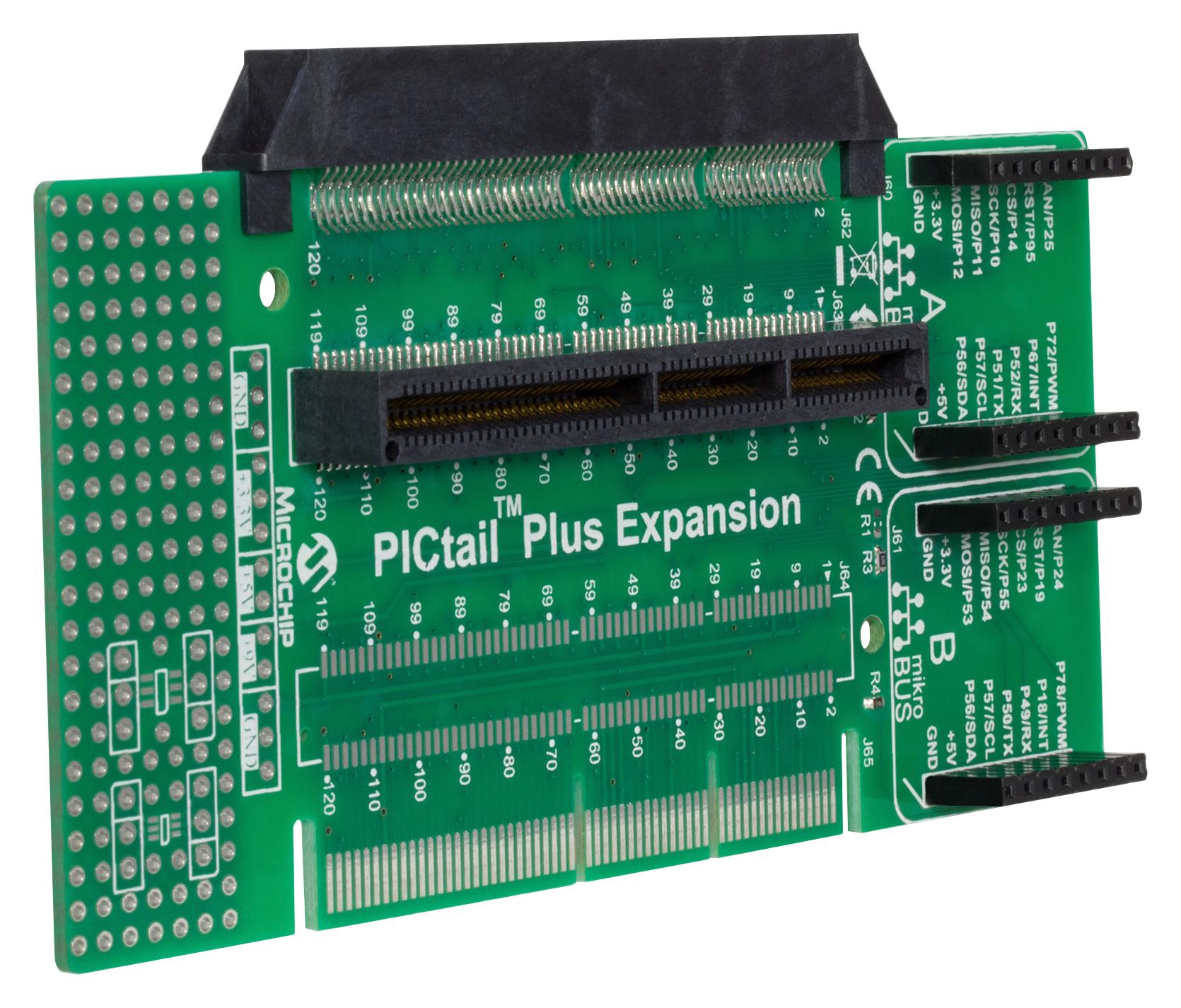

Microchip Technology AC240100 Expansion Board
The PICtail™ Plus Expansion Board enhances the capabilities of the Explorer 16 and Explorer 16/32 development boards by providing compatibility for mikroBUS and PICtail Plus daughter boards. It features dual mikroBUS interfaces, allowing attachment of up to two mikroBUS daughter boards, and a vertical card edge connector for PICtail Plus daughter boards. The board includes a small prototyping area and acts as a signal pass-through, enabling additional horizontally connected daughter boards for expanded system customization and expansion in embedded development projects.
Microchip Technology AC240100 Expansion Board Specifications:
- Supports mikroBUS and PICtail Plus daughter boards
- Two mikroBUS interface connectors compatible with Explorer 16/32
- Vertical card edge connector for PICtail Plus daughter boards
- Includes small prototyping area for custom circuitry
- Pass-through signals enable additional horizontal daughter boards
- Connectivity for digital I/O, UART, SPI, and I2C interfaces
- Compatible with legacy and current development systems
- Dimensions: adjustable to fit standard development boards
- Supports expansion and customization for embedded system designs
- Provides reliable signal routing and power distribution
Buy the Microchip Series Expansion Board: PICtail Plus 2355 West Chandler Blvd.
Enhance your development system with this versatile expansion board designed for Explorer 16 and 16/32 platforms. It supports mikroBUS and PICtail Plus daughter modules, allowing seamless integration of additional hardware. The board features dual mikroBUS connectors, a vertical card edge for PICtail Plus modules, and a small prototyping area for custom circuitry. Its signal pass-through provides flexibility for expanding your embedded projects, making it ideal for engineers seeking reliable, scalable, and efficient hardware expansion in their prototypes and production systems.
Order your Microchip Series Expansion Board today and give your embedded development projects the dependable versatility and expansion capabilities they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology AC240100?
You can click on the BUY or RFQ button to purchase AC240100 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AC240100?
You can download the AC240100 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AC240100?
Microchip Technology
