Microchip Technology ADM00682 Linear Regulator

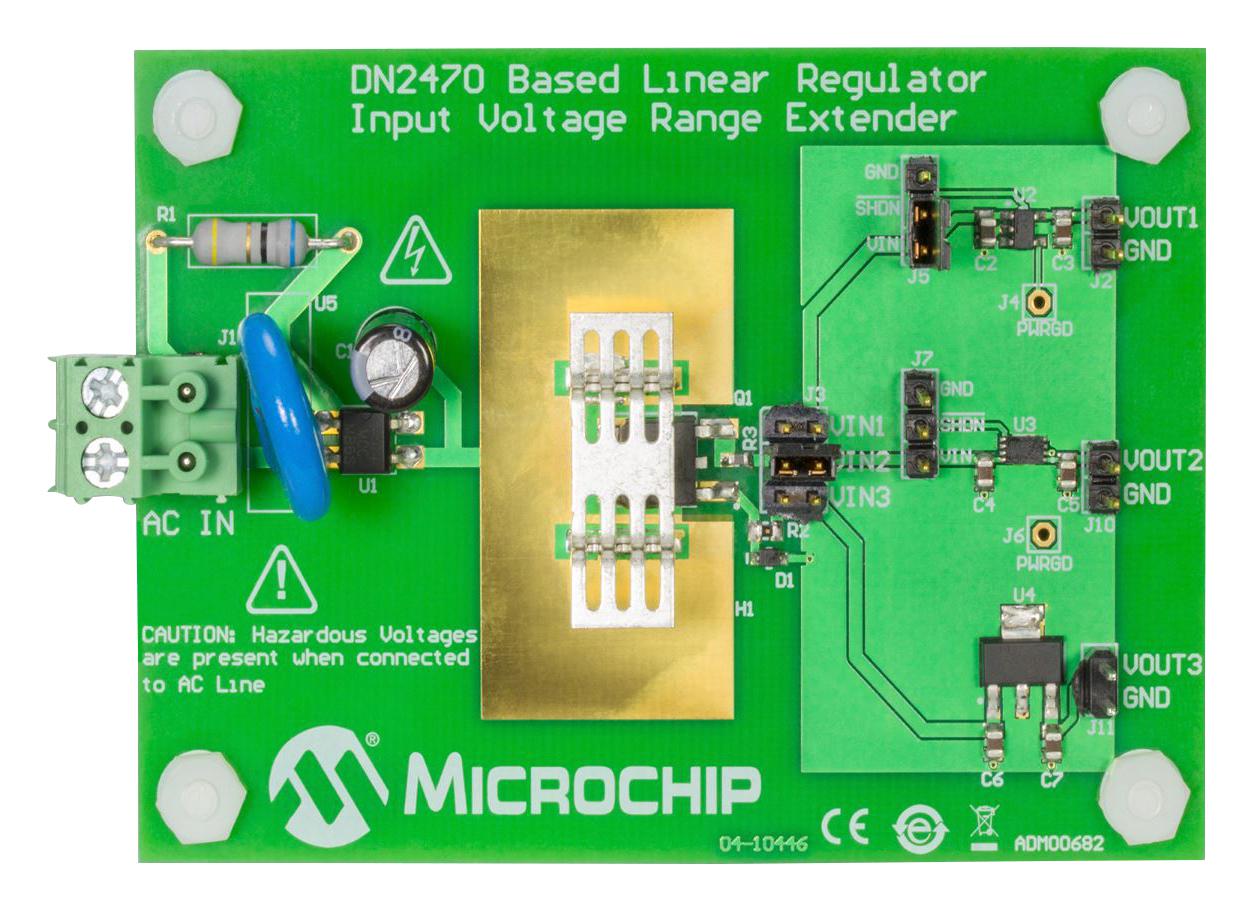

The DN2470 Based Linear Regulator Input Voltage Range Extender Evaluation Board is a versatile testing platform designed for research and development of off-line linear regulation circuits. Featuring a DN2470 depletion-mode vertical FET with 700V breakdown voltage, the board supports three selectable low-dropout regulators: MCP1754, MCP1755, and MCP1790. It operates from 120V or 230V AC mains, delivering a typical output current of 10 mA with safety features like overtemperature protection and transient survivability of 2.5 kV. Its compact design and durable components make it ideal for developing high-voltage linear power supplies and embedded applications.
Microchip Technology ADM00682 Linear Regulator Specifications:
- Input Voltage: 120V or 230VAC
- Output Voltage Range: 3-5V
- Typical Output Current: 10 mA
- Maximum Output Current: Thermally Limited
- Transient Survivability: 2.5 kV
- Overtemperature Protection: Typically +105°C
- LDOs Supported: MCP1754 (3.3V), MCP1755 (5.0V), MCP1790 (3.0V)
- Device: DN2470 depletion-mode vertical FET
- Breakdown Voltage: 700V
- Drain-to-Source Resistance: 42Ω
- Saturated Drain-to-Source Current: 500mA
- Operating Temperature Range: -55°C to +150°C
- Package: TO-252 (D-PAK)
- Safety Certifications: Complies with EU RoHS2 Directive 2011/65/EU, and FCC regulations
Buy the Microchip DN2470 – Reliable Linear Regulator for Industrial Applications
Purchase the Microchip DN2470 Based Linear Regulator Input Voltage Range Extender Evaluation Board online today. This versatile development tool supports 120V and 230V AC lines, providing safe and reliable off-line linear regulation with a 700V depletion-mode FET. Featuring three selectable low-dropout regulators, it offers a typical output current of 10mA, with safety features like overtemperature protection and transient survivability up to 2.5kV. Ideal for research, testing, and developing high-voltage power supplies in industrial and embedded applications.
Get Microchip DN2470 today—built for precision and long-lasting durability in high-voltage power regulation.
