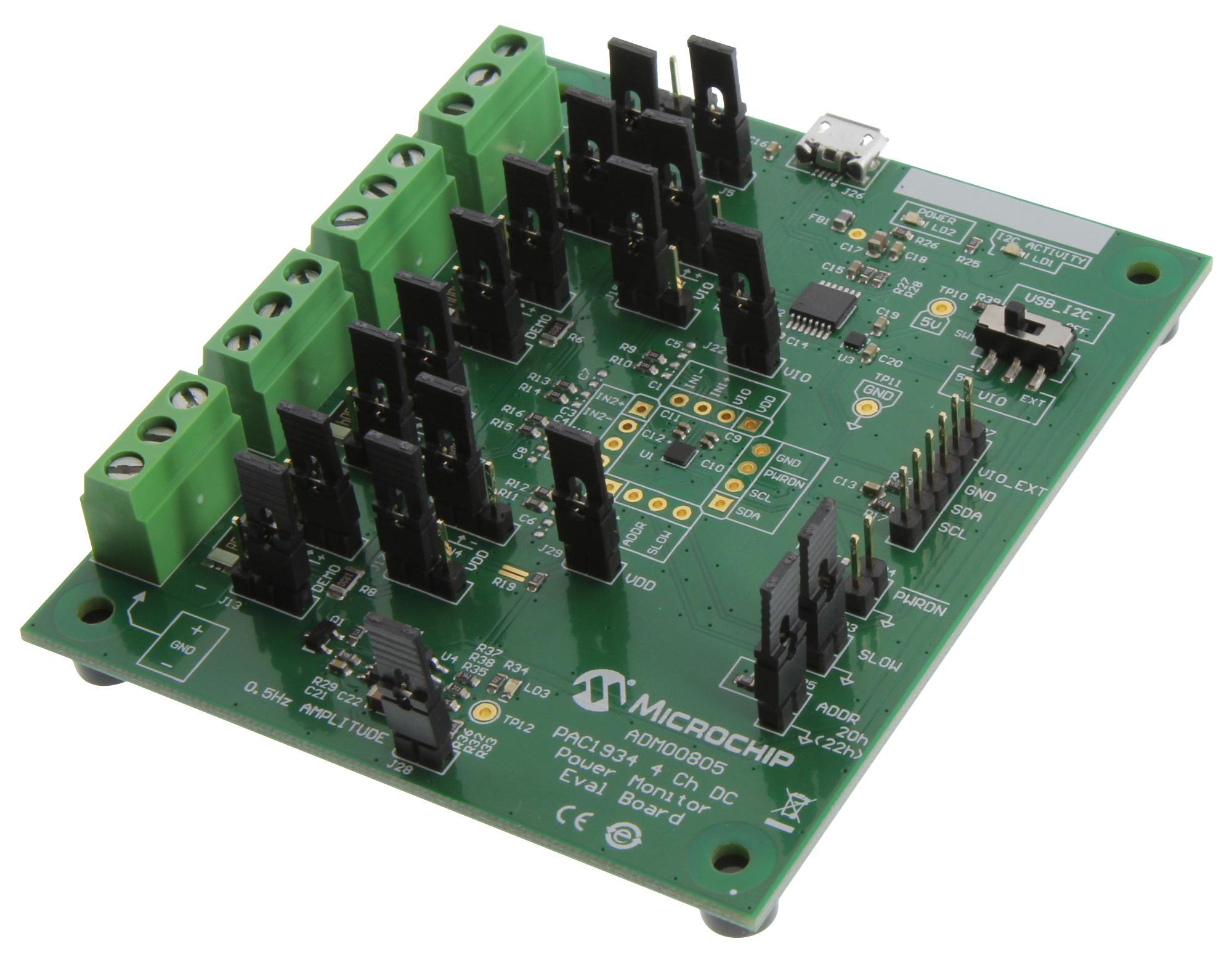

Microchip Technology ADM00805 Power Monitor
The PAC1934 4-channel DC power monitor evaluation board features USB or I2C direct connection for easy integration. It allows straightforward connection to power sources and loads, includes on-board sense resistors and a current square wave generator for testing and calibration. Suitable for evaluating system power, energy consumption, and performance, it offers flexible configurations with external or on-board sources, supporting high-precision voltage and current measurements across multiple channels. The kit includes the evaluation board and a USB Type-A to Micro-B cable for convenient setup and testing in various applications.
Microchip Technology ADM00805 Power Monitor Specifications:
- Device: PAC1934 four-channel DC power/energy monitor
- ADC Resolution: 16-bit for voltage and current measurements
- Sampling Rate: Up to 1024 samples per second
- Voltage Measurement Range: Suitable for system rail voltages
- Current Sense Resistors: On-board with provisions for external replacements (default 10Ω)
- Communication: USB via MCP2221 or direct I2C with external control option
- Power Supply: USB 5V or external 5V to 3.3V; supports external Vpp power connection
- Measurement Accuracy: High precision with register-based averaged results
- Includes: On-board 0.5 Hz square wave current source for testing
- Operating Environment: Development and evaluation in laboratory settings
- Kit Contents: Evaluation board, USB cable, user guide
Buy the Microchip Series PAC1934 DC Power Monitor: ADM00805
Purchase the Microchip PAC1934 ADM00805 evaluation board online to streamline your power monitoring projects. Featuring four channels with high-resolution ADCs, on-board sense resistors, and a built-in test signal generator, this versatile kit allows rapid evaluation of power, energy, and system efficiency. Easily connect via USB or external I2C, enabling seamless integration into testing setups. The included components ensure reliable, high-accuracy measurements for R&D, diagnostics, and prototyping. Buy now to enhance your energy measurement capabilities with Microchip’s trusted power monitoring solutions.
Get Microchip PAC1934 ADM00805 today—powered for precise energy and power measurement with easy USB or I2C connectivity.
Frequently Asked Questions
Where can I buy Microchip Technology ADM00805?
You can click on the BUY or RFQ button to purchase ADM00805 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ADM00805?
You can download the ADM00805 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ADM00805?
Microchip Technology
