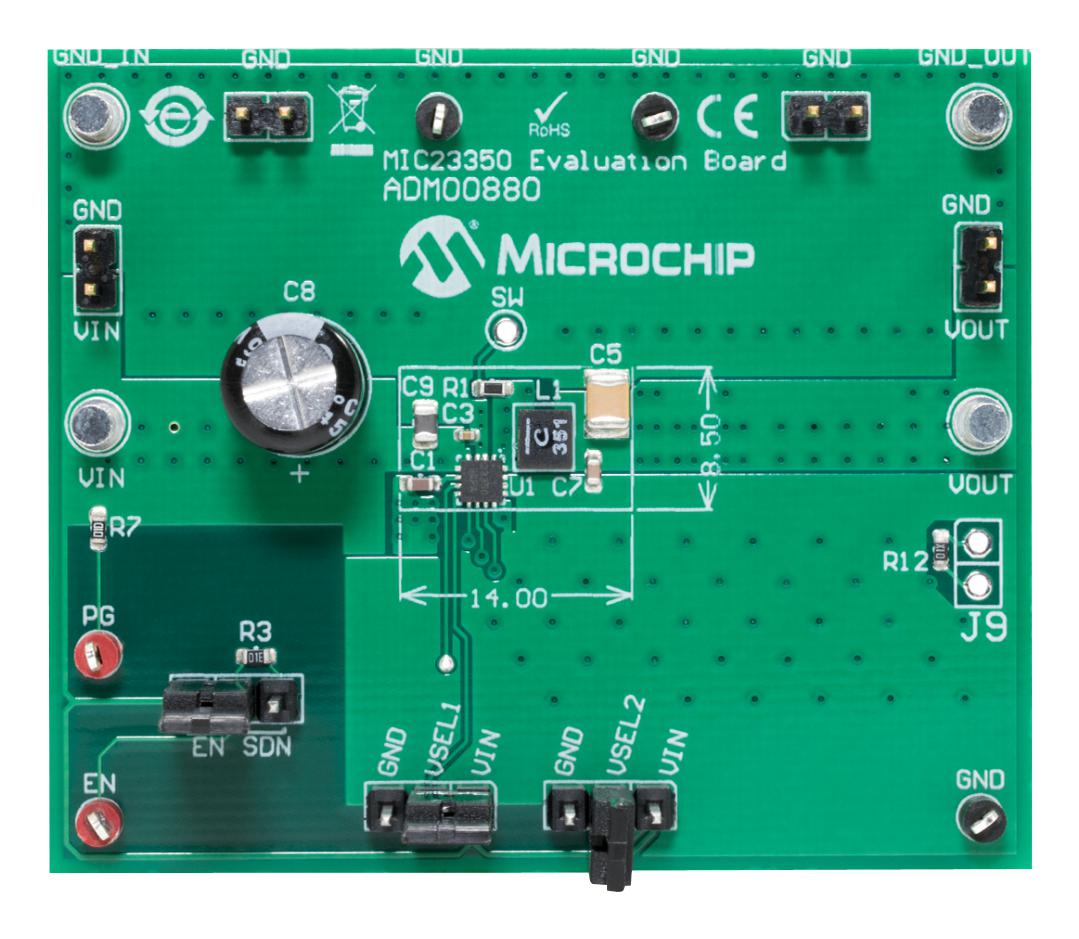

Microchip Technology ADM00880 Buck Regulator Evaluation Board
This evaluation board for the high-performance synchronous buck regulator delivers up to 3A of continuous current. It supports an input voltage range of 2.4V to 5.5V and offers nine selectable output voltages from 0.6V to 3.3V, managed via two voltage select pins. The board features high efficiency up to 95%, making it ideal for power management applications requiring reliable regulation. It includes test points for PG, EN, SW, and loop gain measurement, and supports a high-side current limit of 6A for enhanced durability and performance. Suitable for testing, development, and prototyping in electronic systems.
Microchip Technology ADM00880 Buck Regulator Evaluation Board Specifications:
- Input Voltage Range: 2.4V to 5.5V
- Output Voltage: 0.6V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V
- Maximum Continuous Output Current: 3A
- Efficiency: Up to 95%
- High Side Current Limit: 6A
- Test Points: PG, EN, SW, Loop Gain
- Package Contents: Evaluation Board with MIC23350 regulator
Buy the Microchip Series Evaluation Board: 3A Synchronous Buck Regulator
Purchase the Microchip Buck Regulator Evaluation Board online to streamline your power management projects. This board supports input voltages from 2.4V to 5.5V and delivers up to 3A of current with high efficiency up to 95%. It offers nine selectable output voltages including 0.6V, 0.8V, 1V, and 3.3V, making it ideal for diverse electronic applications. With test points for PG, EN, SW, and loop gain measurements, it’s perfect for testing, development, and prototyping. Order now to enhance your power systems with reliable regulation and robust performance.
Get Microchip MIC23350 Evaluation Board today—designed for precise voltage regulation and reliable power conversion in compact applications.
Frequently Asked Questions
Where can I buy Microchip Technology ADM00880?
You can click on the BUY or RFQ button to purchase ADM00880 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ADM00880?
You can download the ADM00880 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ADM00880?
Microchip Technology
