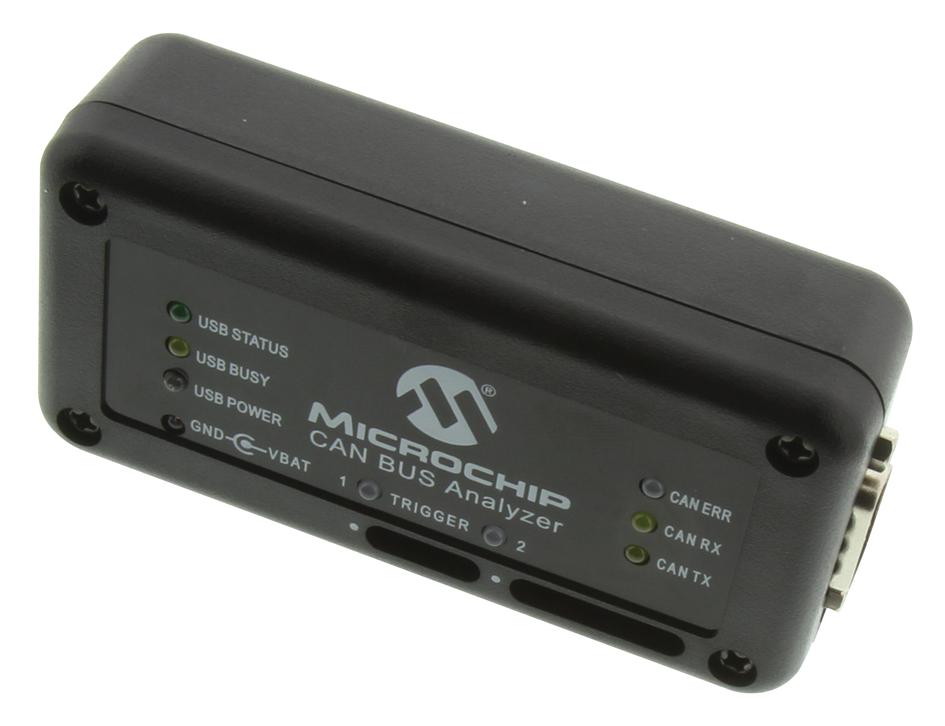

Microchip Technology APGDT002 CAN Bus Analyzer
The APGDT002 is a high-speed CAN bus analyzer designed for easy development and debugging of CAN networks. It supports CAN 2.0b and ISO 11898-2 standards, with transmission rates up to 1 Mbit/s. The tool features a user-friendly PC interface for configuration, data tracing, transmission, filtering, and logging. It offers flexible connection options via a DB9 connector or screw terminals, along with software-controlled termination resistance and status indicators for traffic and errors. The analyzer provides direct access to CAN H and CAN L signals, making it suitable for various applications including automotive, medical, communications, industrial, and robotics. Package includes the CAN bus analyzer, USB mini cable, and software CD with user guide. Due to high market demand, delivery times may vary, and the product is exempt from discounts.
Microchip Technology APGDT002 CAN Bus Analyzer Specifications:
- Supported Standards: CAN 2.0b, ISO 11898-2
- Transmission Rate: Up to 1 Mbit/s
- Connection: DB9 connector, screw terminals
- Termination Resistor: Software controllable 120 ohm
- Status LEDs: Traffic, Error, and Power indicators
- Direct Access: CAN H and CAN L pins via screw terminals
- Operating Voltage: 9-24 V external power supply or USB power
- Package Includes: CAN bus analyzer, USB mini cable, software CD
- Application Areas: Automotive, medical, industrial, robotics, communication
Buy the Microchip APGDT002 – Reliable CAN Bus Analyzer for Industrial Applications
Purchase the Microchip APGDT002 CAN bus analyzer online today and experience simplified CAN network development and debugging. This versatile device supports standards up to 1 Mbit/s, ensuring reliable performance across automotive, medical, industrial, and robotics applications. Featuring easy PC software setup, filter configurations, logging, and direct access to CAN H and CAN L signals, it streamlines your troubleshooting process. The package includes the hardware, USB mini cable, and user guide, enabling quick deployment. Get yours now and improve your design and diagnostic workflows with this high-quality, cost-effective tool.
Order your Microchip APGDT002 high-speed CAN bus analyzer today and enhance your vehicle, industrial, or communication projects with dependable diagnostic tools.
Frequently Asked Questions
Where can I buy Microchip Technology APGDT002?
You can click on the BUY or RFQ button to purchase APGDT002 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part APGDT002?
You can download the APGDT002 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of APGDT002?
Microchip Technology
