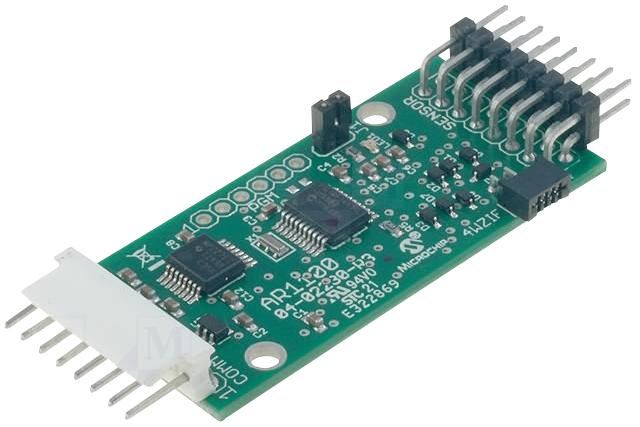

Microchip Technology AR1100BRD Touch Screen Controller
The Microchip mTouch AR1100 is a versatile resistive touch screen controller supporting 4, 5, and 8-wire analog resistive screens. It automatically detects USB or RS-232 communication, providing high accuracy, fast response, and industry-leading ESD protection. The board features dynamic rise-time and sampling capability, 10-bit measurement resolution, and configurable touch parameters. Suitable for industrial, medical, consumer, and kiosk applications, it offers minimal design time with field flash update, free OS drivers, and robust static protection, making it an ideal, easy-to-integrate touch interface solution.
Microchip Technology AR1100BRD Touch Screen Controller Specifications:
- Supply Voltage: 3.3V - 5.0V
- Resolution: 1024x1024 (10-bit), 4096x4096 (12-bit)
- Report Rate: 150 reports per second
- Resistance: 2000 Ohm sheet resistance lead to lead
- Touch Screen Resistance: 2k Ohm
- Static Protection: 24 kVA
- Power Consumption: USB suspend mode < 500 μA, RS-232 sleep mode < 10 μA
- Operating Temperature: -40°C to 125°C
- Dimensions: Refer to PCB mechanical drawing (approximate overall length 69.02 mm, width 25.81 mm, height 11.63 mm)
Buy the Microchip Series AR1100 Touch Screen Controller: AR1100BRD
Order the Microchip AR1100BRD today and enjoy a comprehensive, easy-to-use resistive touch screen controller designed for industrial, medical, and consumer devices. This controller supports 4, 5, and 8-wire screens, features automatic detection of communication protocol—USB or RS-232—and offers industry-leading response speed, high-resolution touch data, and robust static protection. Its flexible configuration, field flash update capability, and free drivers for most operating systems make it ideal for rapid deployment in a wide variety of touch sensing solutions. Purchase online now for reliable, quick integration of your touch interface needs.
Get Microchip AR1100BRD today—built for high accuracy, fast response, and easy integration in resistive touch applications.
Frequently Asked Questions
Where can I buy Microchip Technology AR1100BRD?
You can click on the BUY or RFQ button to purchase AR1100BRD from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AR1100BRD?
You can download the AR1100BRD datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AR1100BRD?
Microchip Technology
