Microchip Technology ARD00410 High-Voltage LED Driver

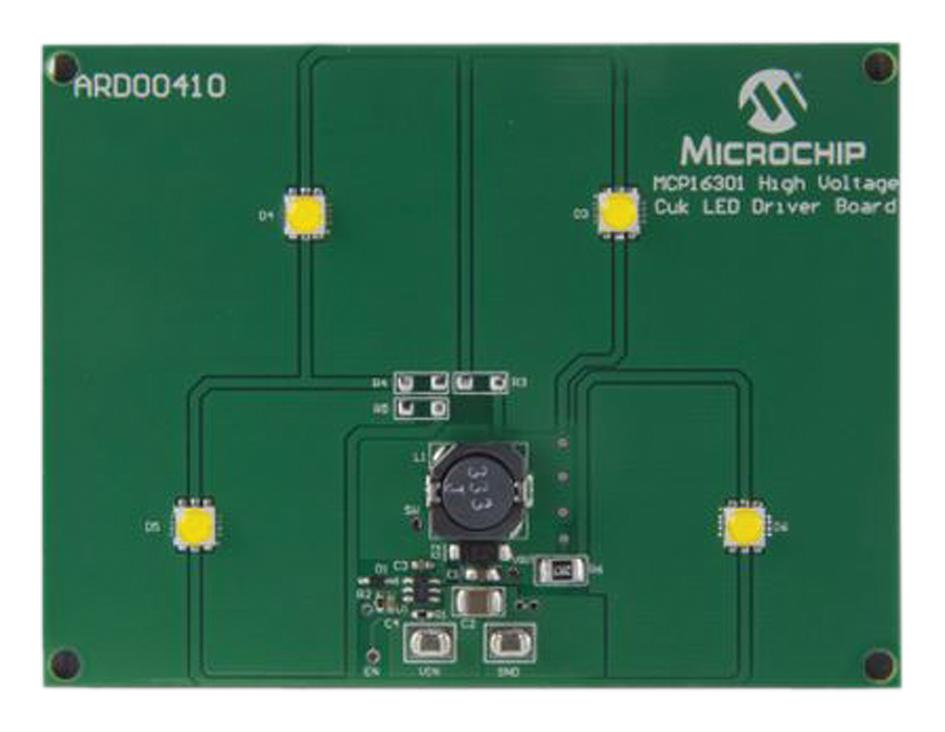

The MCP16301 High-Voltage Single-Inductor Cuk LED Driver Demo Board operates with a 6V to 18V input, providing a regulated 300 mA output current for four 3W LEDs. Designed with surface-mount components, it showcases advanced Cuk converter technology suitable for high-voltage LED applications. The board features test points for input power, enabling users to evaluate performance across the entire voltage range. It includes compensation components for stable operation, and dimming is achievable by pulsing the enable pin. Compact and efficient, it is ideal for custom LED lighting solutions and power management designs.
Microchip Technology ARD00410 High-Voltage LED Driver Specifications:
- Input Voltage Range: 6V to 18V
- Output Current: 300 mA
- Number of LEDs Supported: Four 3W LEDs
- Dimming Method: Pulsing enable pin
- Component Type: Small surface-mount
- Application: High-voltage LED lighting
- Design Feature: Includes resistors and capacitors for compensation
- Operating Mode: Cuk single-inductor
- Test Points: Provided for input power evaluation
- Package Size: Compact for space-limited applications
Buy the Microchip Series MCP16301 LED Driver: ARD00410
Order the Microchip MCP16301 ARD00410 high-voltage LED driver demo board online today to quickly enhance your LED lighting projects. This compact, reliable, and efficient circuit supports 6V to 18V input, delivers 300mA current for four 3W LEDs, and features dimming capabilities via enable pulse. With built-in compensation components, it ensures stable operation across the entire voltage range. Perfect for engineers designing custom lighting solutions, this demo board simplifies integration, accelerates testing, and guarantees high performance for professional and industrial applications.
Buy Microchip MCP16301 ARD00410 now and experience unmatched reliability and performance for high-voltage LED lighting applications.
Frequently Asked Questions
Where can I buy Microchip Technology ARD00410?
You can click on the BUY or RFQ button to purchase ARD00410 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ARD00410?
You can download the ARD00410 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ARD00410?
Microchip Technology
