Microchip Technology AT30TS75AMA8MT Digital Temperature Sensor
The AT30TS75A is a high-precision digital temperature sensor offering measurement over -55°C to +125°C with up to +0.5°C accuracy in the 0°C to +85°C range. It features a programmable resolution from 9 to 12 bits, configurable high and low temperature alarms, and an SMBus compatible serial interface supporting SMBus Timeout, Alert, and Alert Response Address. Designed for low power consumption with shutdown and one-shot modes, it includes factory calibration requiring no external components, making it ideal for industrial, environmental, and instrumentation applications.
Microchip Technology AT30TS75AMA8MT Digital Temperature Sensor Specifications:
- Measurement Range: -55°C to +125°C
- Accuracy: +0.5°C (0°C to +85°C), +1.0°C (-25°C to +105°C), +2.0°C (-40°C to +125°C)
- Resolution: Selectable from 9 to 12 bits (0.5°C to 0.0625°C)
- Supply Voltage: 1.7V to 5.5V
- Power Dissipation: Active current approx. 85μA, Shutdown current approx. 1μA
- Interface: 2-wire I2C/SMBus compatible, supports SMBus Timeout, Alert, and ARA
- Temperature Measurement: Continuous background measurement with no external components
- Alarms: Programmable high and low temperature limits with Alert output

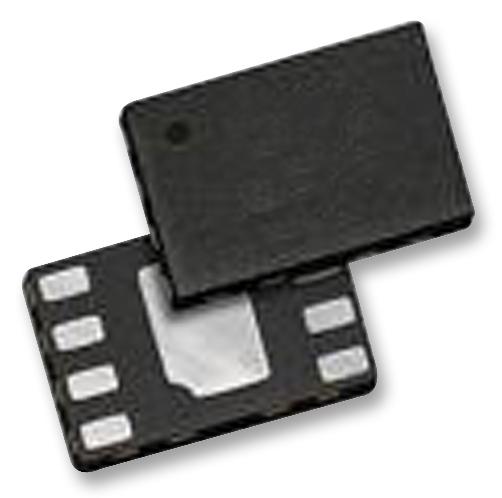

- Package Options: 8-lead SOIC, MSOP, or UDFN
- Operating Temperature: -55°C to +125°C
- Features: Noise filtering, configurable alert polarity, one-shot and shutdown modes
- Calibration: Factory calibrated, no external calibration needed
Buy the Atmel Series Temperature Sensor: AT30TS75A
Get the Atmel Series AT30TS75A digital temperature sensor online today. Its high accuracy, configurable resolution, and SMBus compatibility make it ideal for industrial, environmental, and instrumentation applications. With factory calibration, low power consumption, and multiple package options, the AT30TS75A provides reliable, precise temperature measurement in a compact design. Whether for continuous monitoring or alarm-based applications, it ensures your system's safety and performance with ease of integration and optimal reliability.
Order your Atmel Series AT30TS75A temperature sensor today and ensure accurate, reliable temperature monitoring for your industrial and environmental projects.
Frequently Asked Questions
Where can I buy Microchip Technology AT30TS75AMA8MT?
You can click on the BUY or RFQ button to purchase AT30TS75AMA8MT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AT30TS75AMA8MT?
You can download the AT30TS75AMA8MT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AT30TS75AMA8MT?
Microchip Technology
