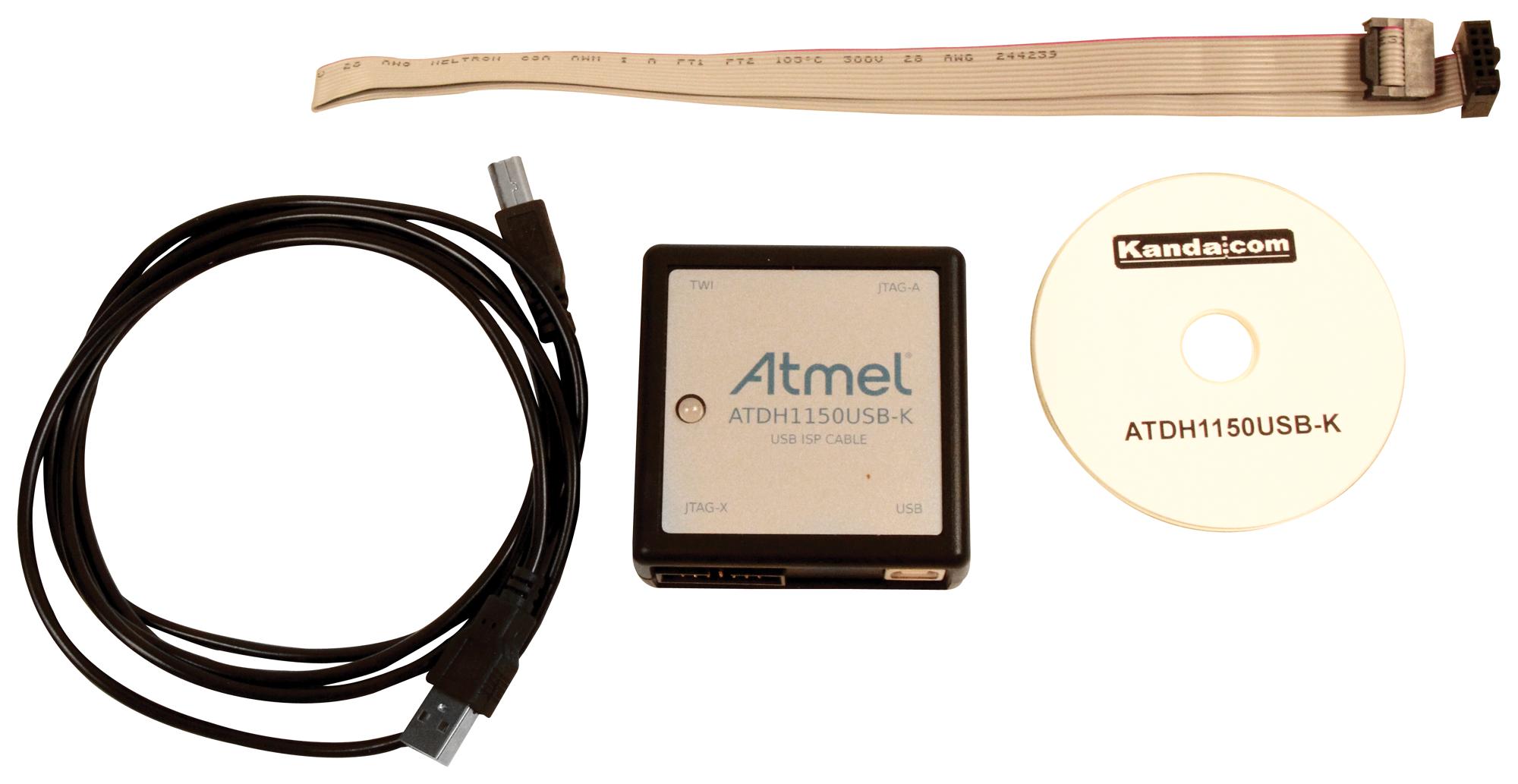

Microchip Technology ATDH1150USB JTAG Programming Cable
The ATDH1150USB is a USB-based JTAG ISP download cable designed for programming Atmel ATF15xx series CPLDs. It connects to a PC via USB 2.0/3.0 and interfaces with a JTAG header on the target circuit board using a 10-pin or 14-pin ribbon cable. Supports multiple voltage standards from 1.65V to 5.5V, enabling seamless in-system programming. Features industry-standard IEEE 1149.1 compliance, status LEDs for operation monitoring, and compatibility with ATMISP software versions 6.6 to 7.x, making it ideal for rapid prototyping and design updates in development environments.
Microchip Technology ATDH1150USB JTAG Programming Cable Specifications:
- Supports IEEE 1149.1 (JTAG) compliant devices
- Connects via USB 2.0/3.0 port
- Supports 10-pin and 14-pin JTAG headers
- Voltage supply Vcc: 1.65V to 5.5V, max 150mA
- Operates with target voltages 1.8V, 2.5V, 3.3V, and 5.0V
- Supports CPLDs with JTAG enabled, default shipped with JTAG enabled
- LED indicators: Green (success), Red (failure), Amber (operation in progress)
- Requires regulated Vcc to pin VocT, GND connection from target
- Cable includes ribbon cable, supports external power supply for Vcc
- Compatible with ATMISP software versions 6.6, 6.7, and 7.x
- Connectors: 10-pin or 14-pin JTAG headers with pinouts as specified
- Enables in-system programming and design iterations
- Constructed for reliable JTAG communications, suitable for prototyping and production
- Operates with standard JTAG header voltages and wiring configurations
Buy the Atmel ATDH1150USB – Reliable JTAG Programming Cable for Industrial Applications
Purchase the Atmel ATDH1150USB JTAG programming cable online today and streamline your CPLD development process. Compatible with ATF15xx series devices, this reliable cable supports multiple voltage standards, ensuring seamless in-system programming. The cable features industry-standard JTAG connectors, status LEDs for easy operation monitoring, and supports ATMISP software for efficient design updates. Perfect for prototyping and production, it provides dependable connectivity for your development environment. Order online now to improve programming accuracy and speed in your projects.
Order your Atmel ATDH1150USB USB JTAG cable today and enhance your CPLD programming efficiency with reliable, industry-standard connectivity.
Frequently Asked Questions
Where can I buy Microchip Technology ATDH1150USB?
You can click on the BUY or RFQ button to purchase ATDH1150USB from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATDH1150USB?
You can download the ATDH1150USB datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATDH1150USB?
Microchip Technology
