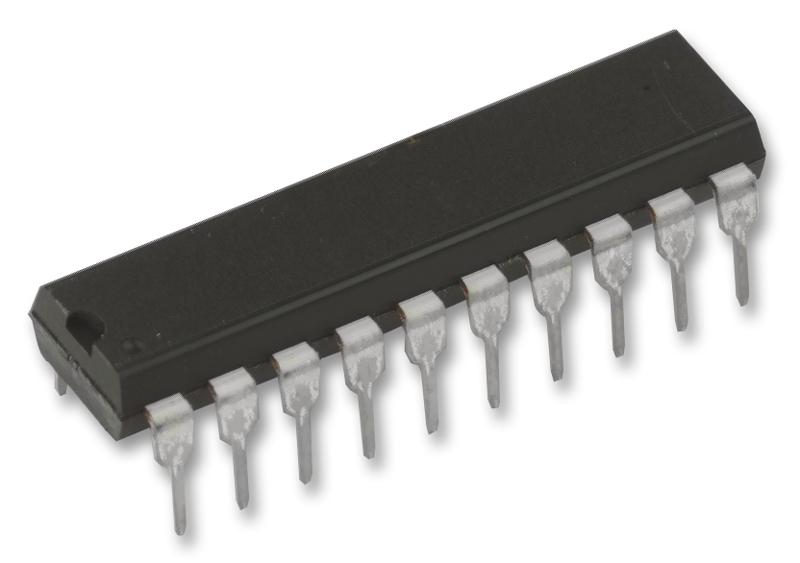

Microchip Technology ATF16V8BQL15PU High-Speed Programmable Logic Device
The ATF16V8BQL-15PU is a high-performance CMOS electrically-erasable programmable logic device (EE PLD) utilizing advanced flash memory technology. It operates over a 5.0V ±10% range, supporting multiple speed options suited for industrial applications. The device features industry-standard architecture, emulating many 20-pin PALs®, with eight outputs each having eight product terms for complex logic functions. It offers high-speed performance with a maximum pin-to-pin delay of 10ns, CMOS/TTL compatibility, reprogrammability, high reliability, and long data retention. Suitable for industrial temperature ranges, it includes input/output pull-up resistors, high ESD protection, and low-power options, making it ideal for industrial automation and control systems. Proper handling is essential due to ESD sensitivity. Market factors may affect delivery times, and discounts are not available for this product.
Microchip Technology ATF16V8BQL15PU High-Speed Programmable Logic Device Specifications:
- Operating Voltage: 5.0V ±10%
- Maximum Pin-to-Pin Delay: 10 ns
- Outputs: 8 with 8 product terms each
- Input/Output Pull-up Resistors: Yes
- Data Retention: 20 years
- Erase/Write Cycles: 100
- ESD Protection: 2,000V
- Temperature Range: Industrial (-40°C to 85°C)
- Power Consumption: Low-power options (standby current about 5mA)
- Package Options: PLCC, PDIP, SOIC, TSSOP
- Archtecture: Industry-standard emulating many 20-pin PALs®
- Reprogrammable: Yes
- ESD Sensitivity: High
- Market Availability: Extended lead times, delivery may vary
- Suitability: Industrial automation, control systems, complex logic applications
Buy the Atmel ATF16V8BQL-15PU – Reliable EE Logic Device for Industrial Applications
Order the Atmel ATF16V8BQL-15PU online to enhance your industrial automation and control systems with reliable, high-speed, reprogrammable logic solutions. This CMOS EE PLD offers industry-standard architecture, supports complex logic functions, and ensures long-term data retention. Its advanced flash technology guarantees durability across industrial temperature ranges, with features like low power consumption, high ESD protection, and multiple package options. Easily integrate this device into your design for optimized performance and long-term reliability, leveraging modern software tools for configuration and testing. Purchase now for efficient, flexible, and durable industrial logic applications.
Get Atmel ATF16V8BQL-15PU today—built for high-speed, reprogrammable industrial logic solutions with long-lasting durability.
Frequently Asked Questions
Where can I buy Microchip Technology ATF16V8BQL15PU?
You can click on the BUY or RFQ button to purchase ATF16V8BQL15PU from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATF16V8BQL15PU?
You can download the ATF16V8BQL15PU datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATF16V8BQL15PU?
Microchip Technology
