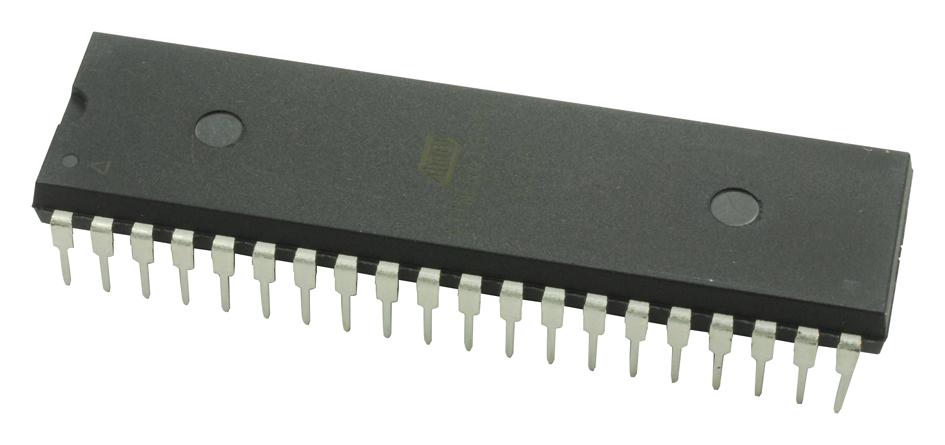

Microchip Technology ATMEGA164PA-PU Datasheet & Stock

The ATMEGA164PA-PU is a high-performance picoPower 8-bit AVR RISC-based Microcontroller combines 16kB ISP flash memory with read-while-write capabilities, 512byte EEPROM, 1kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timers/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, a 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed.




Advanced RISC architecture

Power-on reset and programmable brown-out detection

Internal calibrated RC oscillator

External and internal interrupt sources

Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

131 Powerful instructions-most single clock cycle execution

32 x 8 General purpose working registers

Fully static operation

Up to 20MIPS throughput at 20MHz

On-chip 2-cycle multiplier





QTouch® library support

JTAG (IEEE std. 1149.1 compliant) interface

Programmable watchdog timer with separate on-chip oscillator

On-chip analog comparator

Interrupt and wake-up on pin change





Applications


Motor Drive & Control,

Metering
