Microchip Technology ATSAMW25XPRO Wi-Fi Module
The Atmel ATSAMW25-MR210PB module is a compact Wi-Fi solution based on the IEEE 802.11 b/g/n standard, integrating the ATWINC1500 SoC with a SAM D21 microcontroller. It supports low power modes, full TCP/IP stack, security protocols such as WPA/WPA2, TLS, and SSL, making it ideal for IoT, home automation, security, and industrial applications. With a small footprint of 33.863 x 14.882mm, it offers reliable wireless connectivity, advanced power management, and integrated hardware security features, ensuring efficient performance in battery-powered devices.
Microchip Technology ATSAMW25XPRO Wi-Fi Module Specifications:
- Size: 33.863 x 14.882mm
- Wireless Standard: IEEE 802.11 b/g/n 20MHz (1x1)
- Frequency: 2.412-2.484 GHz
- Output Power: - 802.11b/11Mbps: 17dBm +1dB; 802.11g/54Mbps: 16dBm +1dB; 802.11n/72Mbps: 14dBm +1dB
- Supported Security: WPA/WPA2 Personal, TLS, SSL, WEP 64/128, WPA-TKIP, WPA2 CCMP (AES)
- Microcontroller:ARM Cortex-M0+ with 256KB Flash and 32KB SRAM
- Radio Features: Support for IEEE 802.11b DSSS, 802.11g OFDM, 802.11n MCS0-7, advanced power-saving modes
- Power Supply: 2.7V to 4.3V for power amplifier and regulator; 2.7V to 3.6V for I/O power
- Memory: 8Mb flash, 128KB instruction and 64KB data RAM
- Interfaces: Serial (SPI, UART), Full-speed USB device and host, GPIO, I2C
- Certifications: FCC, CE, IC, TELEC, RoHS

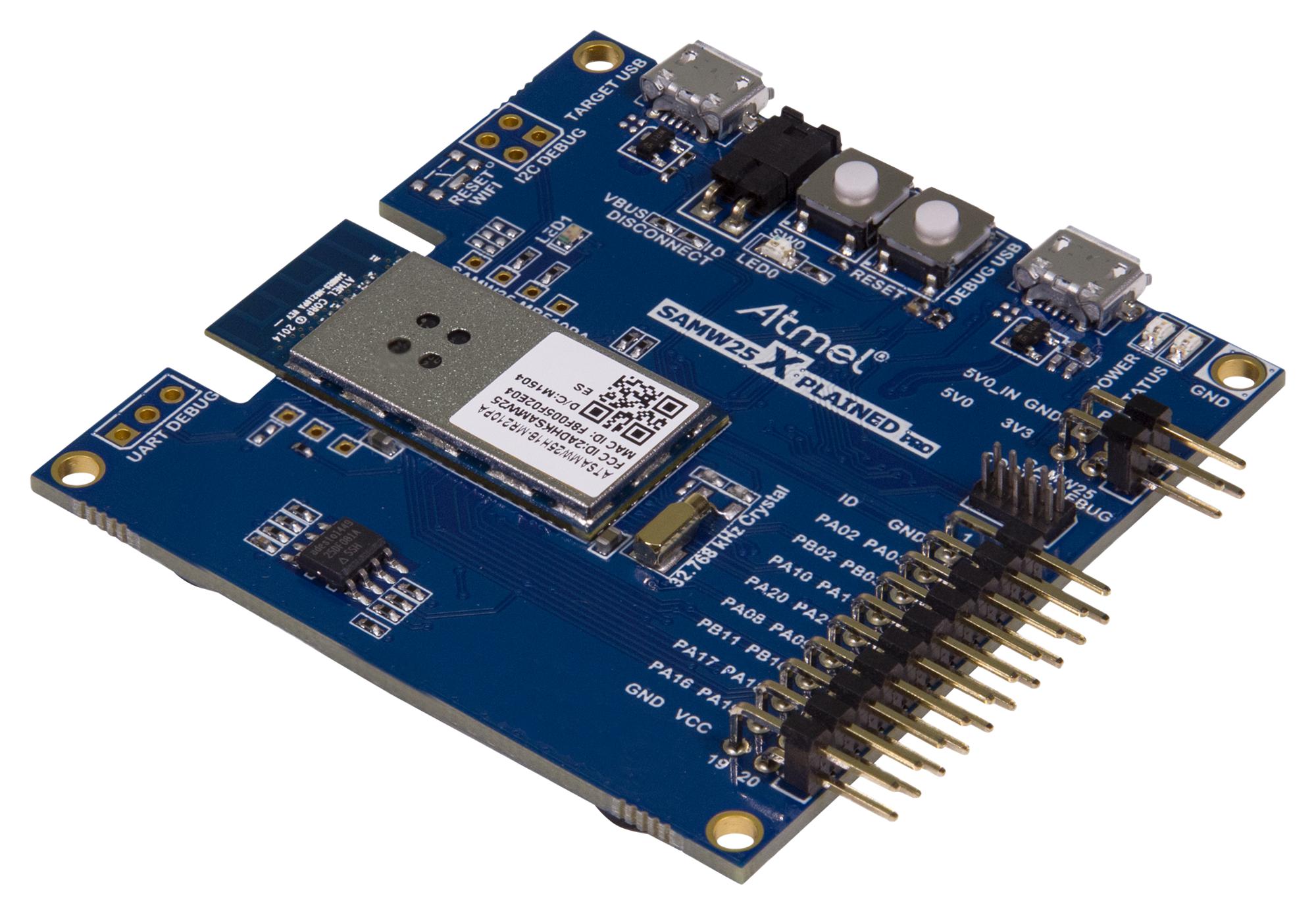

Buy the Atmel Series SmartConnect Wi-Fi Module: ATSAMW25
Discover the Atmel Series SMART SAMW25 Wi-Fi Module, a compact, low-power solution supporting IEEE 802.11 b/g/n Wi-Fi standards with built-in security, microcontroller, and versatile interfaces. Perfect for IoT, home automation, industrial, and multimedia applications, it features a small footprint of 33.863 x 14.882mm, advanced power management, and robust security protocols such as WPA2, TLS, and SSL. Easy to integrate and ideal for battery-powered projects, this module ensures dependable wireless connection performance in a wide range of environments.
Order your Atmel Series SMART SAMW25 Wi-Fi Module today and enable reliable wireless connectivity for your IoT and automation projects.
Frequently Asked Questions
Where can I buy Microchip Technology ATSAMW25XPRO?
You can click on the BUY or RFQ button to purchase ATSAMW25XPRO from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATSAMW25XPRO?
You can download the ATSAMW25XPRO datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATSAMW25XPRO?
Microchip Technology
