Microchip Technology ATSTK600 Datasheet & Stock

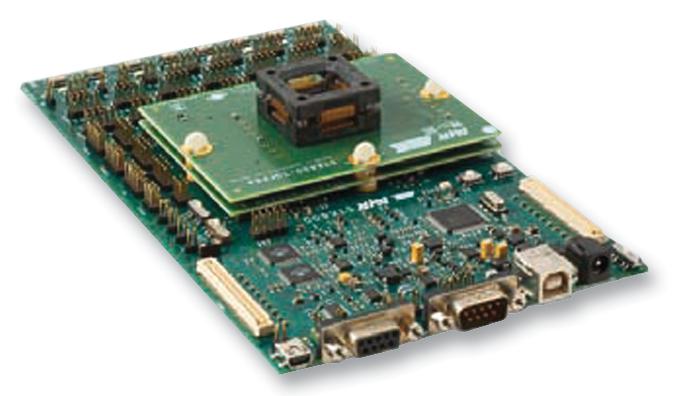

ATSTK600 is a complete starter kit and development system for 8bit and 32bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs. The AVR device connects to the STK600 using an innovative routing and socket card sandwich system, which routes the signals from the device to the appropriate hardware. The system consists of a generic socket card, on which the AVR device is inserted, and a device specific signal routing card, which routes the signals from the socket pins to the different functions on the STK600 main board dependant on the device. This design simplifies hardware setup when switching from one AVR device to another, since all connections from the device to the motherboard are determined by the routing card, a custom board for each device. The routing system is purely passive, so all I/O pins are directly accessible on the connectors with no altering of the electrical behaviour.




AVR Studio 4/AVR32 Studio compatible

USB interface to PC for programming and control

Powered from USB bus or from an external 10Vdc to 15Vdc power supply

Adjustable target VCC (0V to 5.5V)

Two adjustable reference voltages with high accuracy (0V to 5V, 10mV res)

Clock oscillator, adjustable on the fly from AVR Studio (0MHz to 50MHz, 0.1% res)

Serial ISP of tinyAVR and megaAVR devices

PDI Programming of AVR XMEGA devices

JTAG programming of 8bit megaAVR, 8/16bit AVR XMEGA and 32bit AVR UC3 devices

Wire Programming of 32bit AVR UC3 devices





Applications


Automotive,

Communications & Networking,

Building Automation,

Motor Drive & Control,

Security,

Consumer Electronics,

Industrial,

Sensing & Instrumentation,

Lighting,

Metering






Contents

Power Cable, USB High Speed cable, Cable Kit, 2 sets of screws/nuts, 1 set of clips, MCU card for ATmega2560



Footnotes
Note that a routing card and socket card for the specific device would need to be purchase separately.
