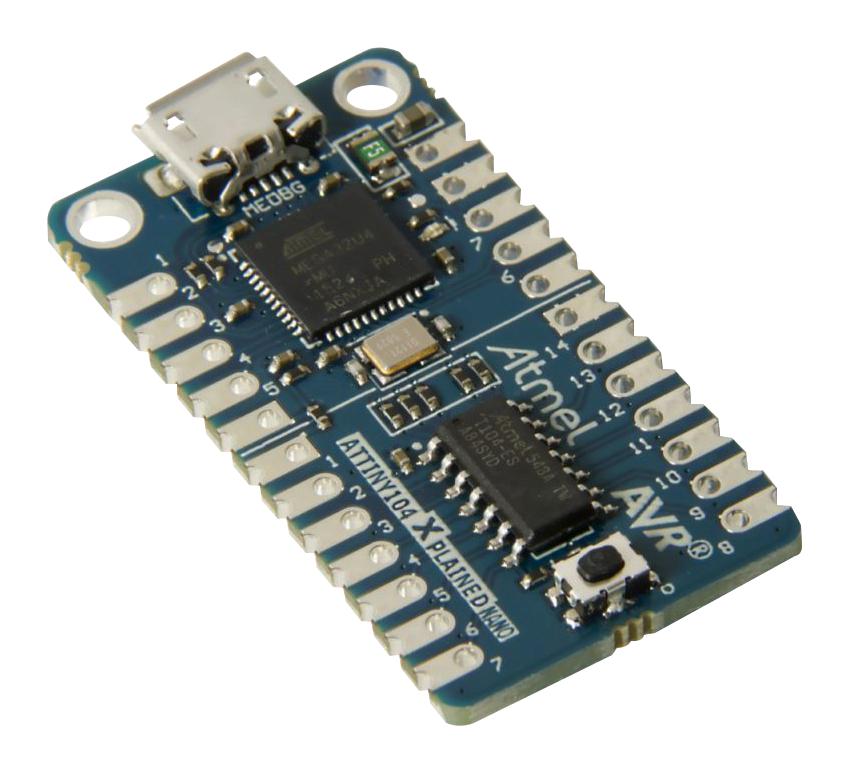

Microchip Technology ATTINY104XNANO Microcontroller Evaluation Kit
The ATtiny104 Xplained Nano evaluation kit is a compact hardware platform designed for the assessment of the ATtiny104 microcontroller. It features an on-board mini embedded debugger (mEDBG) capable of programming via Tiny Program Interface (TPI) and provides a Virtual COM port for serial communication. The kit includes Power LED indicators, a mechanical user button, and a yellow status LED. USB powered with standard pin-out connections, it enables easy integration and testing of microcontroller features for development and educational purposes.
Microchip Technology ATTINY104XNANO Microcontroller Evaluation Kit Specifications:
- Microcontroller: ATtiny104
- Power supply: USB 5V (4.4V to 5.25V USB compliant)
- On-board mini embedded debugger (mEDBG) with TPI and Virtual COM port
- Interface: TPI clock and data pins, UART TX/RX lines
- Standard pin-out includes RST, TPI, VREG, UART, CLK, GND, VUSB
- Programming: via mEDBG using Atmel Studio
- User LED: Yellow, driven by an I/O pin
- Mechanical Button: User-configurable, connected to I/O with internal pull-up enabled
- Dimensions: Compact form factor suitable for development and testing
- Connectivity: Micro-USB for power and programming
Buy the Atmel Series Evaluation Kit: ATtiny104 Xplained Nano: ATTINY104XNANO
Enhance your embedded development with the ATtiny104 Xplained Nano evaluation kit. Featuring onboard debugger, USB power, status LEDs, and a user button, it offers a compact, easy-to-use platform for assessing microcontroller features. Perfect for prototyping, learning, and testing, this kit connects seamlessly via Micro-USB and supports programming through Atmel Studio. Its integrated design simplifies setup, accelerates project development, and ensures reliable performance, making it an ideal choice for engineers and students alike.
Buy Atmel ATtiny104 Xplained Nano now and experience unmatched reliability and performance for microcontroller development and testing.
