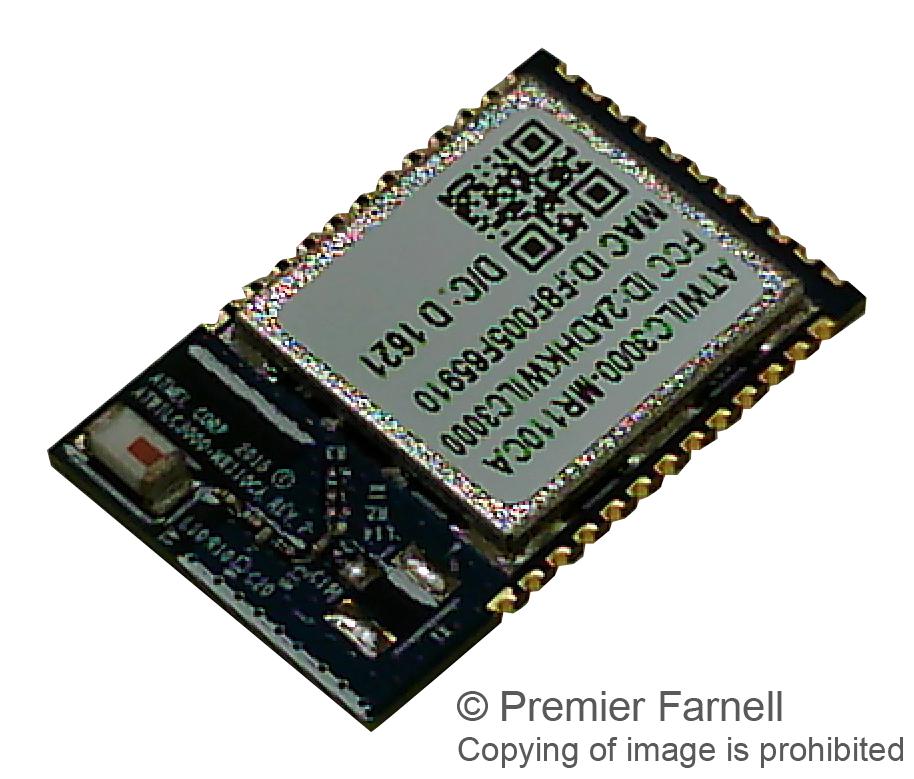

Microchip Technology ATWILC3000MR110CA Wireless Module
The ATWILC3000-MR110CA module combines Wi-Fi 802.11 b/g/n connectivity with Bluetooth 4.0, optimized for low power mobile applications. It features an integrated RF/PHY/MAC SOC supporting up to 72 Mbps PHY rate, with an embedded chip antenna, PA, LNA, and power management circuitry, all in a compact 22.43 x 14.73 mm form factor. The module includes SPI, SDIO, UART, I²C, GPIOs, and a PCM interface, operating from -40°C to +85°C, and ensures certified, high-performance wireless communication with advanced security protocols.
Microchip Technology ATWILC3000MR110CA Wireless Module Specifications:
- Form Factor: 22.43 x 14.73 mm, Thickness: 2.09 mm
- Operating Temp Range: -40°C to +85°C
- Wi-Fi Standards: 802.11 b/g/n, Single stream 1x1, PHY rate up to 72 Mbps
- Bluetooth: 4.0 (Basic Rate, EDR, BLE), Support for F hopping, Secure pairing, and coexistence protocols
- Wireless Frequency: 2.412 to 2.472 GHz (2.4 GHz ISM band)
- Antenna: Integrated chip antenna with 0.5 dBi gain
- Interfaces: SPI, SDIO, UART, I²C, GPIO, PCM
- Power: VBAT range 2.519V to 4.2V, Supply Voltage VDDIO: 1.8V to 3.3V
- Security Protocols: WEP, WPA, WPA2, WPA2 Enterprise
- Certifications: FCC, IC, CE, RED, ISED, and RoHS compliant
Buy the Microchip Series MR110CA Wireless Module: ATWILC3000-MR110CA
Purchase the Microchip Series MR110CA wireless module online today and enhance your product with high-performance, low power Wi-Fi and Bluetooth connectivity. Featuring support for 802.11 b/g/n and Bluetooth 4.0 protocols, an integrated antenna, robust security, and certifications from FCC, CE, and IC, this module is ideal for IoT, embedded systems, and mobile applications. Its compact design, multiple interface support including SPI, SDIO, UART, I²C, GPIOs, and PCM, makes integration straightforward. Ensure your project benefits from fast deployment, proven reliability, and seamless wireless communication by ordering online now.
Order your Microchip Series MR110CA wireless module today and give your IoT projects reliable Wi-Fi and Bluetooth connectivity with integrated security features.
Frequently Asked Questions
Where can I buy Microchip Technology ATWILC3000MR110CA?
You can click on the BUY or RFQ button to purchase ATWILC3000MR110CA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATWILC3000MR110CA?
You can download the ATWILC3000MR110CA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATWILC3000MR110CA?
Microchip Technology
