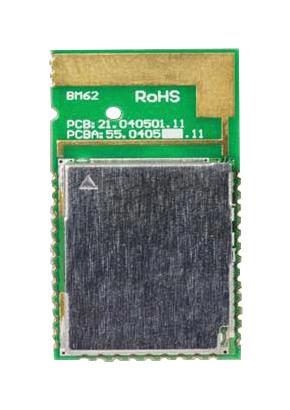

Microchip Technology BM62SPKS1MC20001AA Bluetooth Stereo Module
The BM62 series Bluetooth 4.2 stereo audio module features Class 2 operation with an RF shield. It supports Bluetooth profiles like HFP 1.6, HSP 1.2, A2DP 1.3, SPP 1.2, and AVRCP 1.6, along with Bluetooth BR/EDR and BLE depending on firmware. It supports high-resolution 24-bit, 96 kHz audio and allows two simultaneous host connections via HFP or A2DP profiles. The module offers transparent UART mode for seamless serial data transfer and can be configured via Windows GUI or MCU. Its compact size is 29mm x 15mm x 2.5mm, suitable for portable audio devices.
Microchip Technology BM62SPKS1MC20001AA Bluetooth Stereo Module Specifications:
- Bluetooth Version: 4.2 with BR/EDR and BLE support (FW dependent)
- Profiles supported: HFP 1.6, HSP 1.2, A2DP 1.3, SPP 1.2, AVRCP 1.6
- Audio Data Format: 24-bit, 96 kHz high-resolution
- Operation Mode: Class 2 RF output (+2 dBm typical)
- Size: 29 mm x 15 mm x 2.5 mm
- Integrated antenna and RF shield
- Supports dual host connection via HFP or A2DP
- UART interface for serial data transparent mode
- Configurable via Windows GUI or directly by MCU
- Supports firmware upgrades
- Compliance: RoHS
- Operating Voltage: 3.2V to 4.2V
- Operating Temperature: -20°C to +70°C
- Internal battery charger up to 350 mA
- Built-in lithium-ion/polymer battery regulator and ADCs
Buy the Buy Microchip Bluetooth 4.2 Stereo Module Part Number BM62SPKS1MC20001AA Online
Purchase the Microchip Bluetooth Stereo Module BM62SPKS1MC20001AA today and integrate advanced wireless audio features into your devices. This compact module offers high-resolution 24-bit, 96 kHz audio support, dual connection capability via HFP or A2DP profiles, and seamless UART data transfer. With easy configuration through Windows GUI or MCU, it simplifies development for portable speakers, soundbars, and wireless subwoofers. Its robust design includes integrated antenna, RF shield, and battery management, making it an ideal solution for reliable wireless audio applications.
Order your Microchip Bluetooth 4.2 Stereo Module BM62SPKS1MC20001AA today and enhance your portable audio projects with reliable wireless connectivity and high-resolution sound.
Frequently Asked Questions
Where can I buy Microchip Technology BM62SPKS1MC20001AA?
You can click on the BUY or RFQ button to purchase BM62SPKS1MC20001AA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part BM62SPKS1MC20001AA?
You can download the BM62SPKS1MC20001AA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of BM62SPKS1MC20001AA?
Microchip Technology
