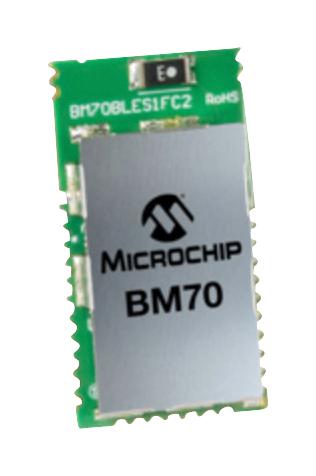

Microchip Technology BM70BLE01FC20B04AA Bluetooth Low Energy Module
The BM70BLE01FC2 is a compact Bluetooth 4.2 Low Energy module with integrated antenna, supporting UART interface, GPIO pins, PWM channels, ADCs, and advanced RF features for IoT, wearable, and industrial applications. It features certified RF performance, low power modes, and reliable PCB mounting options, making it ideal for secure, battery-operated wireless solutions in health, home, security, and data logging environments. This versatile module enables easy integration with high RF sensitivity and compliance with global standards, optimizing connectivity and energy efficiency in embedded systems.
Microchip Technology BM70BLE01FC20B04AA Bluetooth Low Energy Module Specifications:
- Operating voltage range: 1.9V to 3.6V
- Operating temperature: -40°C to +85°C
- Frequency band: 2.402 GHz to 2.480 GHz (ISM band)
- Channels: 0 to 39
- Transmit Power: 0 dBm (typical)
- Receive Sensitivity: -90 dBm (typical)
- Antenna: integrated ceramic chip antenna or external RF pad
- Crystal oscillator: 32 MHz
- GPIO pins: 18 for BM70, 9 for BM71 modules
- ADC: 8 channels for BM70, 5 channels for BM71, 12-bit resolution
- PWM channels: 3 for BM70, 1 for BM71
- RF certifications: FCC, ISED, CE, MIC, KCC, NCC, SRRC
- Size: 12x15x2.4 mm (BM70), 6x8x1.6 mm (BM71)
- Certified for Bluetooth SIG v4.2, with RF signal sensitivity of -90 dBm
- Power consumption: Tx=3.3 mA, Rx=3.2 mA, sleep mode: 60 pA
- Built-in crystal and antenna options for optimized RF performance
Buy the Buy Microchip BM70BLE01FC2 Part Number BM70BLE01FC2 Online
Purchase the Microchip BM70BLE01FC2 Bluetooth Low Energy Module online now and enhance your IoT and wearable device projects with certified RF performance, low power operation, and easy PCB integration. This compact module supports UART, GPIO, PWM, and ADC interfaces, offering versatile connectivity options for health, security, home automation, and industrial applications. Benefit from certified worldwide compliance, integrated crystal, and flexible antenna options, all designed to deliver secure, efficient, and reliable wireless communication in a small footprint, specifically optimized for portable battery-operated devices.
Order your Microchip BM70BLE01FC2 Bluetooth Low Energy Module today and enjoy reliable wireless connectivity for IoT, wearable, and industrial projects.
Frequently Asked Questions
Where can I buy Microchip Technology BM70BLE01FC20B04AA?
You can click on the BUY or RFQ button to purchase BM70BLE01FC20B04AA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part BM70BLE01FC20B04AA?
You can download the BM70BLE01FC20B04AA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of BM70BLE01FC20B04AA?
Microchip Technology
