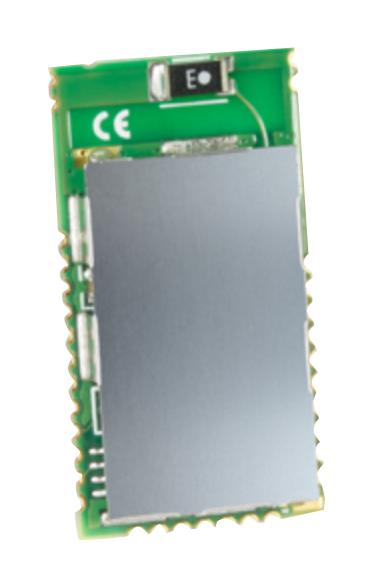

Microchip Technology BM78SPPS5MC20002AA Bluetooth Module
The BM78 module is a compact, fully certified Bluetooth 4.2 dual-mode wireless module designed for easy integration into IoT, health, industrial, and LED lighting applications. It supports Bluetooth Classic and Low Energy profiles, features an integral or external antenna, and offers configurable power management, GPIO control, and UART data transmission. The module includes an onboard crystal, voltage regulators, and secure AES128 encryption, enabling rapid product development with reduced time to market. It features a small footprint, low power consumption, and broad regulatory approvals, making it ideal for portable, battery-operated devices requiring reliable wireless communication.
Microchip Technology BM78SPPS5MC20002AA Bluetooth Module Specifications:
- Frequency: 2.402 GHz to 2.480 GHz
- Bluetooth version: 4.2 Dual Mode (BR/EDR & LE)
- Power output: +1.5 dBm typical for Class 2
- Sensitivity: -90 dBm (BR/EDR), -92 dBm (LE)
- Operating voltage: 3.3V to 4.2V
- Operating temperature: -20°C to +70°C
- Firmware upgrade: In-field over UART (Flash version)
- Antenna options: Integral ceramic chip antenna or external antenna
- Size: Small, surface-mount, castellated pads for PCB mounting
- Supported profiles: GAP, SDP, SPP, GATT, ATT, SMP, L2CAP, iAP2
- Certified: FCC, IC, MIC, KCC, NCC, CE, and others
- Secure AES128 encryption and internal matching circuitry
- Data throughput: Up to 32 Kbps (BR/EDR) at 1 Mbps UART baud
- Power modes: Deep-sleep, standby, connected, and link-back modes
- GPIOs: Configurable for control and status indication
Buy the Buy Microchip Bluetooth 4.2 Dual-Mode Module Part Number BM78SPPS5MC2 Online
Discover the Microchip Bluetooth Module designed for seamless integration into IoT, health, industrial, and lighting devices. Supporting Bluetooth 4.2 dual-mode, it offers fast data transfer, secure AES128 encryption, and broad certification for worldwide use. The module features an integral or external antenna, configurable GPIOs, and an onboard crystal and voltage regulators, enabling quick deployment in battery-operated systems. Compact and low-power, it’s ideal for portable applications requiring reliable wireless communication, helping you reduce development time and accelerate product deployment.
Buy Microchip BM78SPPS5MC2 now and experience unmatched reliability and performance with secure wireless connectivity for your IoT projects.
Frequently Asked Questions
Where can I buy Microchip Technology BM78SPPS5MC20002AA?
You can click on the BUY or RFQ button to purchase BM78SPPS5MC20002AA from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part BM78SPPS5MC20002AA?
You can download the BM78SPPS5MC20002AA datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of BM78SPPS5MC20002AA?
Microchip Technology
