Microchip Technology CL320SGG 3-Channel LED Driver
The CL320 is a 3-channel linear LED driver designed for driving multiple LED strings with a fixed 20mA output current and a high 90V standoff voltage. It features separate enable pins for each channel to enable PWM or linear dimming, over-temperature protection, and simple thermal management with a heat slug package. Ideal for LCD backlighting and indicator lamps, it operates from 6.5V to 90V supply, with built-in protections against overheating and electrical faults, ensuring reliable LED operation in various applications.
Microchip Technology CL320SGG 3-Channel LED Driver Specifications:
- Supply Voltage Range: 6.5V to 90V
- Output Current: 20mA ±6% tolerance
- Standoff Voltage: 90V
- Operating Temperature: -40°C to 125°C
- Thermal Protection: Yes, activates at 135°C
- Package: 8-Lead SOIC with Heat Slug
- Enable Pins: Three, active low for each channel
- Output Voltage: up to 90V
- Rise Time: 1.0-1.2μs
- Fall Time: 170-250ns
- Max Junction Temperature: 135°C
- Pin Configuration: EN1, EN2, EN3, GND, OUT1, OUT2, OUT3, VIN
- Dimensions: 4.90x3.90mm body, 1.70mm height
- Storage Temperature: -65°C to +150°C
- ESD Rating: Not specified
- Compliance: RoHS

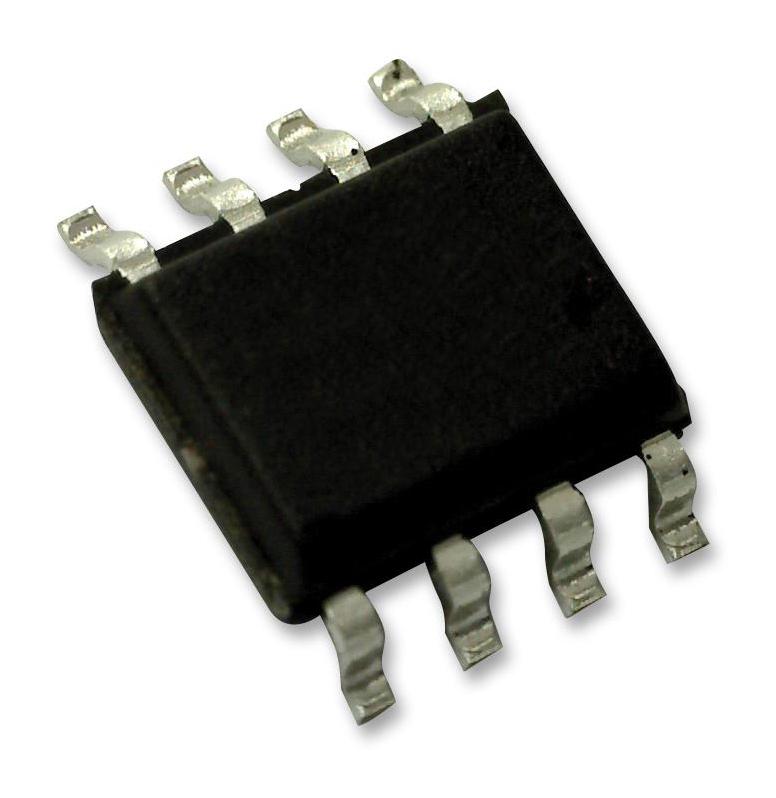

Buy the Buy Supertex CL320 Part Number CL320SGG Online
Purchase the Supertex CL320 3-Channel LED Driver online today and enjoy dependable operation for LCD backlighting, indicator lamps, and multi-string LED applications. Its fixed 20mA current across three channels, high 90V standoff voltage, and comprehensive over-temperature protection make it ideal for reliable, efficient LED control. With separate enable pins and thermal safeguards, this compact device ensures durability and flexible lighting solutions for professional electronics and illumination projects. Buy online now for fast delivery and excellent support.
Buy Supertex CL320 now and experience unmatched reliability and high voltage LED driving performance.
Frequently Asked Questions
Where can I buy Microchip Technology CL320SGG?
You can click on the BUY or RFQ button to purchase CL320SGG from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part CL320SGG?
You can download the CL320SGG datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of CL320SGG?
Microchip Technology
