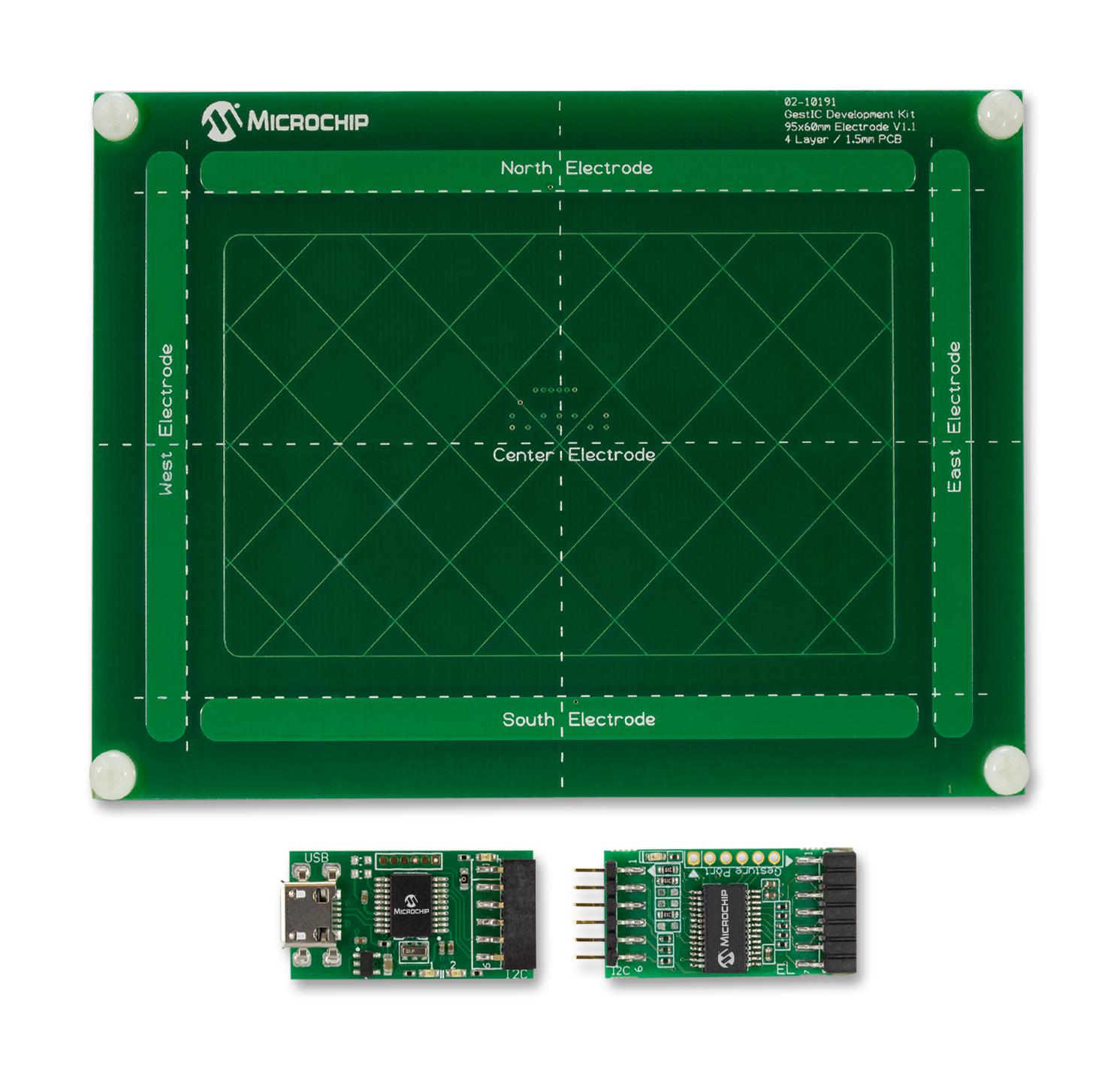

Microchip Technology DM160226 3D Gesture Controller
The MGC3030 is a mixed-signal gesture controller based on Microchip's patented Gestic technology. It features one transmit and five very sensitive receive channels capable of detecting electriс field changes in the femtofarad range, enabling precise 3D gesture recognition. The development kit facilitates easy integration into applications, providing system setup hardware and software, including reference electrode PCBs and software tools like Aurea. Ideal for developing gesture-driven interfaces in embedded or PC environments, it supports rapid prototyping and testing of innovative touchless user interfaces.
Microchip Technology DM160226 3D Gesture Controller Specifications:
- MGC3030 3D gesture controller with one transmit and five receive channels
- Electrode size: 95x60 mm reference PCB with four frame and one center electrodes
- Electrode layers: 4-layer PCB using FR4 material
- Electrode capacitances: North 9 pF, East 9 pF, South 9 pF, West 8 pF, Center 7 pF
- Power supply: 3.3V regulated, via MCP1801T voltage regulator
- Data interfaces: 6-pin header for MGC3030, 6-pin socket for IC to USB bridge
- Communication: USB CDC via PIC18F14K50; default I2C address 0x42, switchable to 0x43
- Dimensions: MGC3030 unit PCB 49x49 mm, electrode PCB 120x85 mm
- Connector types: 2mm socket, 6-pin headers, FPC connectors available
- Included software: Aurea Software Package, GestIC Library, SDK supporting host and embedded development
- Operating environment: Compatible with Windows 7 and Windows 8, supports design-in and evaluation
Buy the Microchip Series Woodstar Gesture Controller: DM160226
Enhance your project with the Microchip Gesture Controller development kit, featuring sensitive electrodes and software tools for rapid gesture recognition integration. This kit includes the MGC3030 module, reference electrodes, a USB bridge, and the Aurea GUI, enabling seamless prototyping and testing of touchless interfaces. Its versatile hardware design supports multiple connection options and detailed electrode configurations. Perfect for embedded and PC-based gesture recognition applications, this kit accelerates your development process, ensuring high accuracy and responsive control for innovative user interaction systems.
Order your Microchip Series Woodstar DM160226 gesture development kit today and accelerate your touchless interface projects with reliable Microchip technology.
