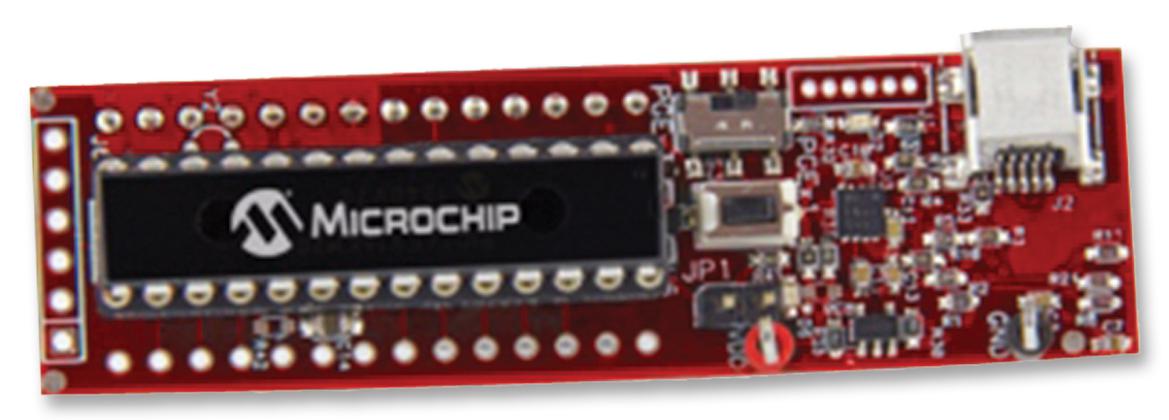

Microchip Technology DM2400132 Microcontroller Development Board
The Microstick for 5V PIC24 K Series Devices is a compact, versatile development tool designed for easy programming and debugging of 16-bit microcontrollers. Equipped with an integrated debugger, programmer, and socket for the target chip, it facilitates rapid prototyping and development. Powered via USB, it includes circuitry for low-voltage ICSP programming and features a switch to select PGECx/PGEDx pins for circuit flexibility. The board also manages power delivery with overcurrent protection, making it ideal for embedded system development and microcontroller projects.
Microchip Technology DM2400132 Microcontroller Development Board Specifications:
- Power Supply: USB bus powered
- Target Voltage: 5V
- Power Protection: FPF2102 load switch with overcurrent trip point of 200-400mA
- In-Circuit Serial Programming (ICSP): Low-voltage circuitry, configurable PGECx/PGEDx pins
- Microcontroller Socket: DIP (300 mils) or wide package (600 mils)
- Device Compatibility: PIC24 K Series microcontrollers
- Microchip MPLAB X IDE Compatibility: Version 1.60 or later
- Programming Capability: Includes integrated debugger and programmer
- Pin Headers: P1, P2, P3 for external circuitry development
- Configuration Bits: Set to enable MCLR pin for programming/debugging
- Power Switching: Controlled via onboard FPF2102 switch
Buy the Buy Microchip Microstick for 5V PIC24 K Series Devices Part Number DM2400132 Online
Get your Microchip Microstick for 5V PIC24 K Series Devices online today. Designed for easy programming and debugging, this development board features an integrated debugger, power management, and socket for the target microcontroller. It supports low-voltage ICSP programming, and its flexible pin configuration helps in rapid prototyping. Powered via USB with overload protection, it ensures safe operation. Perfect for engineers or hobbyists working on embedded system development, it streamlines workflows and reduces project turnaround time.
Order your Microchip Microstick with integrated debugger and low-voltage ICSP support today and accelerate your embedded development projects.
Frequently Asked Questions
Where can I buy Microchip Technology DM2400132?
You can click on the BUY or RFQ button to purchase DM2400132 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DM2400132?
You can download the DM2400132 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DM2400132?
Microchip Technology
