Microchip Technology DSPIC33EP16GS202ISO dsPIC33EP16GS202I/SO

The dsPIC33EP16GS202-I/SO is a 16-bit digital signal controller housed in a 28-pin SOIC package. Designed for digital power applications, it integrates high-speed PWM modules, analog-to-digital converters (ADC), programmable gain amplifiers (PGA), and comparators. It supports common multi-loop digital switch-mode power supplies (SMPS) and other digital power conversion tasks. The device features 16 KB of programmable flash memory, a 70 MIPS CPU, and an architecture optimized for code efficiency using C and assembly. It offers single-cycle MAC/MPY operations with dual data fetch, mixed sign multiplication, hardware division, and a fail-safe clock monitor. Additional features include an independent watchdog timer, fast wake-up and start-up times, 32-bit multiply support, and configurable fault and current limit inputs. The controller supports various output modes, including center-aligned, redundant, complementary, and true independent outputs. It operates within a voltage range of 3V to 3.6V with a core voltage of 3.3V and runs at 140 MHz. It includes interfaces such as I2C, SPI, and UART, as well as an internal oscillator with ±0.9% accuracy, power-on and brown-out reset circuitry, and low-power management modes like sleep, idle, and doze. The device provides 2 KB of RAM, three timers, internal capture and output compare modules, three external interrupts, and numerous analog inputs and I/O peripherals. Notably, it features high-speed 12-bit ADCs with up to 3.25 Msps per core, dedicated result buffers, flexible trigger sources, and multiple analog comparators and amplifiers. Designed for applications in communications, networking, industrial automation, and embedded system development.

View DSPIC33EP16GS202ISODatasheet [pdf]

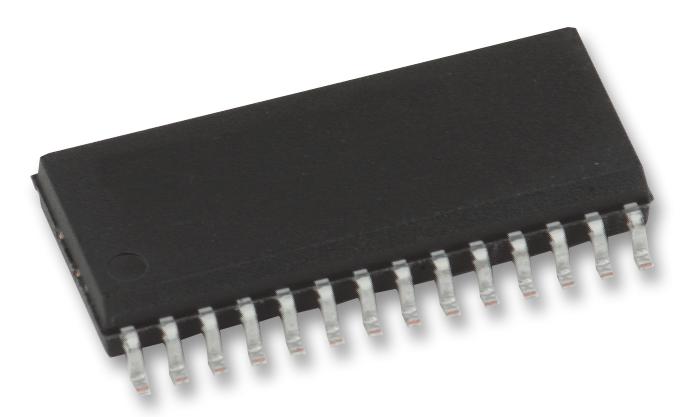

Buy the Buy Microchip dsPIC33EP16GS202 I/SO 28-Pin 16KB Flash DSP Controller Online

Order the Microchip dsPIC33EP16GS202-I/SO now and unlock superior digital power management. Featuring 16KB flash, high-speed 12-bit ADCs, multiple PWM modes, UART, SPI, I2C interfaces, and low-power sleep modes, this 28-pin DSP controller is ideal for industrial, communication, and automation applications. Its architecture supports power-efficient design with fast wake-up and hardware-accelerated math operations, ensuring your embedded system performs reliably and efficiently. Secure your project by purchasing online today and benefit from quick delivery and expert support.

Buy Microchip dsPIC33EP16GS202-I/SO now and experience high-performance digital power control with advanced analog, PWM, and communication features.
