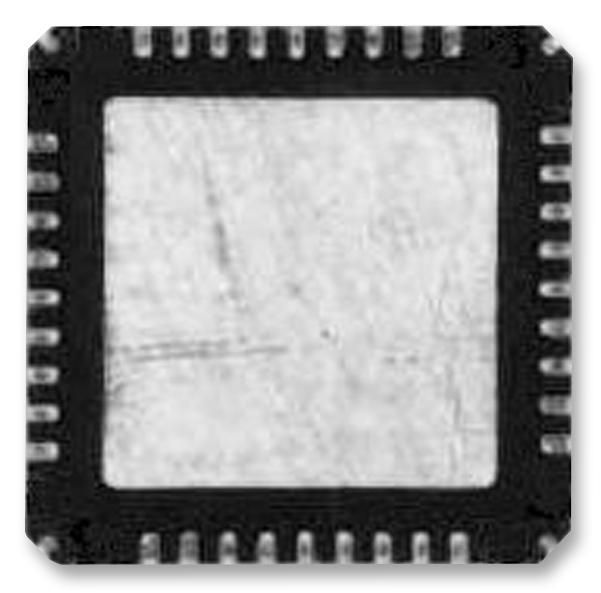

Microchip Technology DSPIC33EV128GM103IM5 High-performance Digital Signal Controller
The dsPIC33EV128GM103IM5 is a high-performance 16-bit digital signal controller with integrated analog features including ADC, Op Amps, and PWM modules. Suitable for motor control, industrial, and automation applications, it offers extensive peripheral support, configurable I/O ports with Remappable Pin Select, multiple communication interfaces such as SPI, UART, I2C, CAN, and advanced timing features. Designed for industrial temperature range (-40°C to +125°C), it combines high speed DC operation up to 60 MIPS, robust reset and security features, and flexible power management including sleep, idle, and doze modes. It features Error Correcting Code (ECC) for flash durability, multiple memory organization options, and comprehensive development support tools from Microchip.
Microchip Technology DSPIC33EV128GM103IM5 High-performance Digital Signal Controller Specifications:
- Core: 16-Bit dsPIC33E CPU
- Speed: up to 60 MIPS
- Temperature Range: -40°C to +125°C
- Voltage Range: 4.5V to 5.5V
- Flash Memory: 128KB with ECC, Programmable in-row erase and multi-page operations
- SRAM: 16KB
- Analog: 36-channel 10-bit/12-bit ADC, Op Amps, Comparators, Temperature Sensor
- PWM: 3 Generators, 6 Outputs, Dead Time, Phase Shift
- Communication: SPI (2 modules), UART (2 modules), I2C, CAN (1 module)
- Timers: 1x 16-bit, 2x 32-bit Timers with External Clock Support
- Peripheral Remapping: PPS supporting multiple peripherals
- Power Modes: Sleep, Idle, Doze, with Power Management features
- Reset: Power-on, Brown-out, Watchdog, External MCLR, Security reset
- Supported in industrial (-40°C to +125°C) temperature range
- Package: 64-pin TQFP, with detailed dimensions and land patterns specified
Buy the Buy Microchip dsPIC33EV128GM103IM5 Online
Order the Microchip dsPIC33EV128GM103IM5 online today to leverage its extensive analog and digital peripherals, high-speed operation up to 60 MIPS, and robust security features. Perfect for industrial, motor control, and automation projects, this 16-bit MCU supports multiple communication interfaces including UART, SPI, I2C, and CAN. It features flexible remappable I/O ports, advanced timing modules, and power management modes for energy-efficient operation. With a comprehensive development environment support from Microchip, it ensures ease of integration, programming, and debugging to accelerate your project deployment.
Buy Microchip dsPIC33EV128GM103IM5 now and experience unmatched reliability and performance for industrial and motor control applications.
Frequently Asked Questions
Where can I buy Microchip Technology DSPIC33EV128GM103IM5?
You can click on the BUY or RFQ button to purchase DSPIC33EV128GM103IM5 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DSPIC33EV128GM103IM5?
You can download the DSPIC33EV128GM103IM5 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DSPIC33EV128GM103IM5?
Microchip Technology
