Microchip Technology DT100111 Low-Power Wireless Development Board

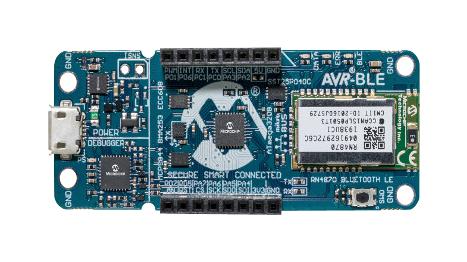

The AVR-BLE development board enables rapid development of ultra-low power wireless applications with a powerful ATmega3208 microcontroller, secure element, BLE module, and extensive sensor interfaces. It includes a 3-axis accelerometer, 4Mb serial flash, high-accuracy temperature sensor, mikroBUS connector for over 700 sensors, and supports USB drag-and-drop programming along with debugging via Atmel Studio or MPLAB X IDE. Ideal for wearable, mobile, and IoT sensors, it can be powered via USB or a CR2032 battery, providing a versatile platform for secure and efficient wireless solutions.
Microchip Technology DT100111 Low-Power Wireless Development Board Specifications:
- Microcontroller: ATmega3208 RISC CPU, 20MHz operation, 32KB Flash, 4KB SRAM
- Secure Element: ATECC608A for ultra-secure key storage, SHA256, AES-CCM, ECDH, ECDSA
- Bluetooth Module: RN4870 Bluetooth 5 Certified Module
- Sensors: BMA253 3-axis accelerometer, MCP9844 temperature sensor
- Flash Memory: 4Mb SST25PF040CT serial flash
- Power Supply: Via USB or CR2032 battery
- USB Interface: Virtual UART serial port, supports drag-and-drop programming
- Expansion: mikroBUS connector for over 700 sensors and actuators
- Indicators: Two user LEDs, one push button
- Dimensions and Power: Compact size suitable for portable IoT devices
- Supported IDEs: Atmel Studio 7, MPLAB X IDE, START, MCC
- Additional Features: Onboard USB, low-power consumption, versatile prototyping platform
Buy the Microchip Series IoT Secure Sensor: DT100111
Purchase the Microchip DT100111 now to accelerate your IoT projects with a secure, low-power Bluetooth development platform. Featuring advanced microcontrollers, secure authentication, and extensive sensor connectivity, this versatile board is designed for rapid prototyping of wearable, mobile, and connected sensors. Support for over 700 expansion modules via mikroBUS, along with drag-and-drop programming and debugging capabilities, make this platform ideal for developing secure, efficient wireless solutions. Invest today for reliable IoT sensor integration and fast deployment.
Get Microchip DT100111 today—built for secure, low-power wireless sensor development and rapid prototyping.
Frequently Asked Questions
Where can I buy Microchip Technology DT100111?
You can click on the BUY or RFQ button to purchase DT100111 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part DT100111?
You can download the DT100111 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of DT100111?
Microchip Technology
