Microchip Technology HPFM00117 Fiber Optic Power Driver
The AgileSwitch HPFM-HPM Fiber Series driver is designed for precise control and fault monitoring of IGBT-based power systems, supporting up to 30 Amps peak current at 15 kHz. It features an isolated DC/DC converter, a single fault reporting via fiber I/O, and automotive-grade components for enhanced reliability. Suitable for applications such as solar, wind, UPS, electric vehicles, motor drives, and high-speed traction, this driver offers configurable gate resistance, active clamping, and comprehensive fault protection, ensuring safe and efficient operation in demanding environments.
Microchip Technology HPFM00117 Fiber Optic Power Driver Specifications:
- Supply Voltage VCC to GND: 14.5 to 16 V
- Peak Gate Current: ±30 A
- Output Power per Gate: 7.0 W
- Switching Frequency: 0 to 15 kHz
- Isolation Voltage: min 6000 V RMS
- Working Voltage, Primary to Secondary: 3800 V
- Creepage Distance: 25 mm
- dV/dt Rate: 50 kV/μs
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +90°C
- Supply Current Without Load: 90 to 110 mA
- UVLO Voltage Level: 12 to 13.5 V
- Gate Output Voltage Low: -10 to -12 V, High: +14 to +16 V
- Desat Monitor Voltage: 9 V
- Response Time after Fault: 450–500 ns
- Dimensions: 197.1 mm x 438.33 mm x 165 mm
- Material: Automotive temperature grade components

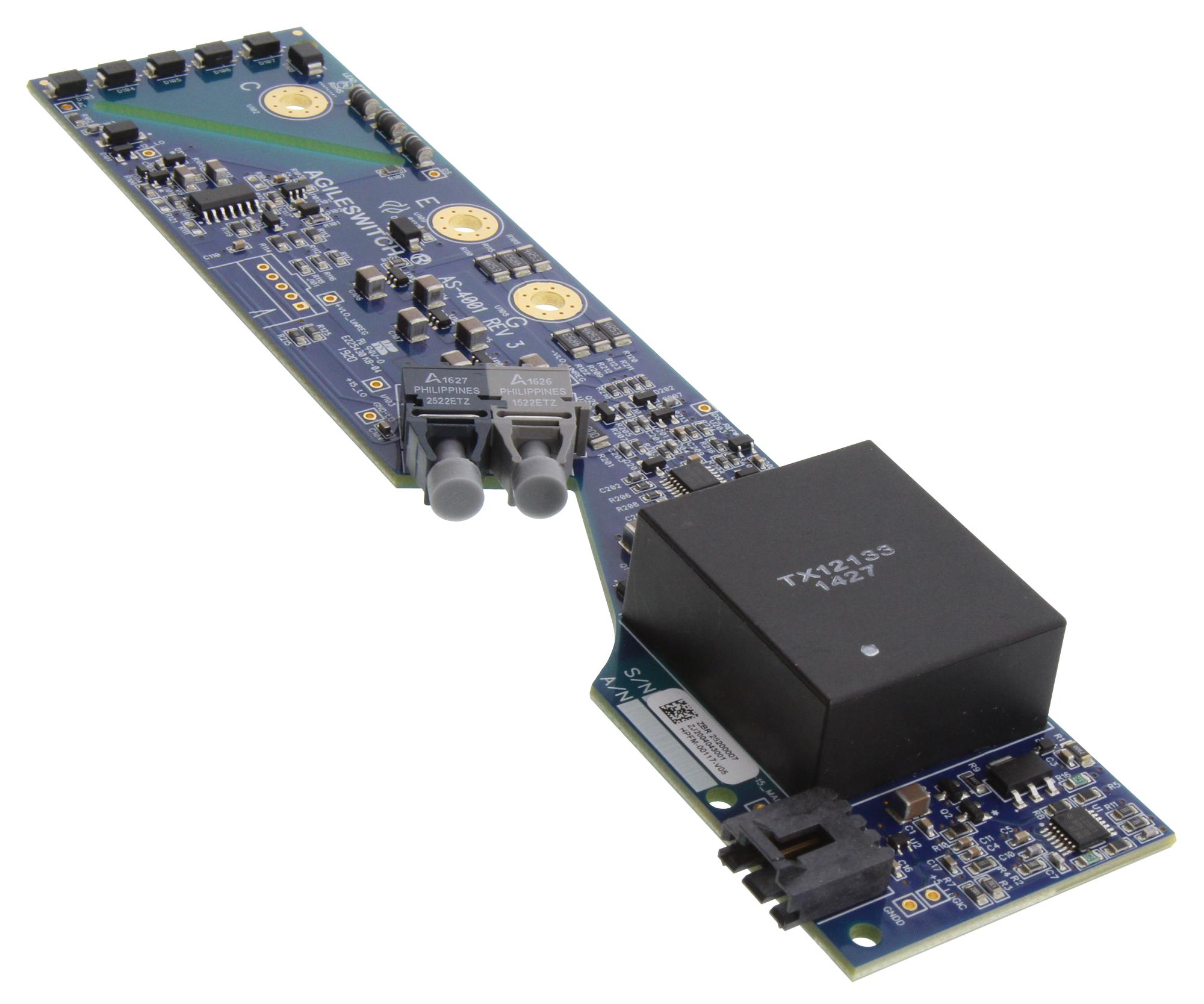

Buy the AgileSwitch Series HPFM-HPM Fiber Driver: HPFM00117
Enhance your power system reliability with the AgileSwitch HPFM-HPM Fiber Driver. Supporting up to 15 kHz and 30 Amps peak current, it provides precise fault reporting via fiber optic communication. Designed for demanding industrial, renewable energy, and transportation applications, this driver features automotive-grade components, configurable gate resistance, and active short circuit protection. Its compact design ensures ease of installation and maintenance, while its robust specifications guarantee consistent performance in harsh environments. Buy online now to upgrade your control solutions seamlessly.
Order your AgileSwitch Series HPFM-HPM fiber driver today and ensure reliable, high-frequency control for your power systems and industrial applications.
