Microchip Technology HV98100TECH LED Driver IC
The HV98100/HV98101 are non-dimmable, off-line LED driver ICs designed for general LED lighting applications up to 15W. They feature valley-switching buck-boost topology, high power factor (typically 0.97), and low total harmonic distortion (~5%). These compact ICs support a single input voltage range (110 Vac for HV98100 and 230 Vac for HV98101), providing good LED current regulation with better than 5% accuracy. They incorporate valley detection, over-voltage, and short-circuit protections, and include a bootstrap supply voltage feature, making them suitable for LED lamps and fixtures with high efficiency and low EMI performance.
Microchip Technology HV98100TECH LED Driver IC Specifications:

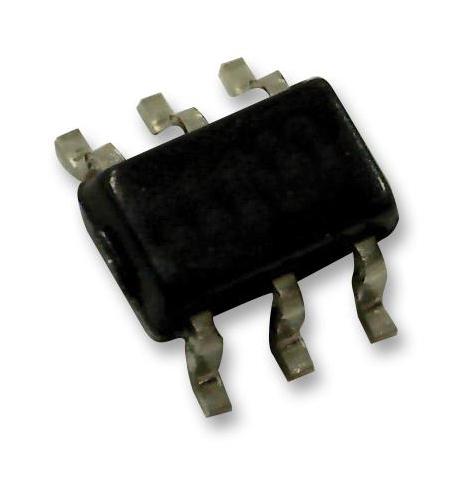

- Package: 6-Lead SOT-23
- Supply Voltage: HV98100: 110 V ±15%, HV98101: 230 V ±15%
- Max Power Rating: 15W
- Line Frequency: 50/60Hz
- Input Voltage Range: 110 Vac or 230 Vac
- Maximum Junction Temperature: +125°C
- Operating Junction Temperature: -40°C to +125°C
- Over-Voltage Protection Threshold: ~8 V
- Switching Frequency: 217 kHz to 480 kHz (max)
- Valley Detect Current: 600 μA
- GATE driver sourcing/sinking current: 0.3 A / 0.6 A
- Peak inductor current (recommended): 156 mA
- Rds(on) of FET: <7.772 Ω at max power
- Protection Features: Over-voltage, over-current, short-circuit, valley detection
- Output Power: 5W-15W
- Efficiency: High, with power factor close to 1
- Temperature Range: -65°C to +150°C storage
- Electrical rating for PVpp: Clamp voltage 17.5 V, start at 16 V, stop at 8 V
Buy the Microchip HV98100 – Reliable LED Driver for Industrial Applications
Experience high-efficiency LED lighting with the Microchip HV98100. Designed for reliable off-line operation, it offers superior power factor correction, low total harmonic distortion, and advanced protection features. Ideal for LED lamps and fixtures up to 15W, this compact SOT-23 package supports cost-effective designs using standard inductors. Easily integrated with valley detection and bootstrap features, it ensures consistent LED current regulation and low EMI performance, making it a perfect choice for robust industrial lighting systems.
Get Microchip HV98100 today—built for high power factor, low harmonic distortion, and durable LED lighting solutions.
Frequently Asked Questions
Where can I buy Microchip Technology HV98100TECH?
You can click on the BUY or RFQ button to purchase HV98100TECH from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part HV98100TECH?
You can download the HV98100TECH datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of HV98100TECH?
Microchip Technology
