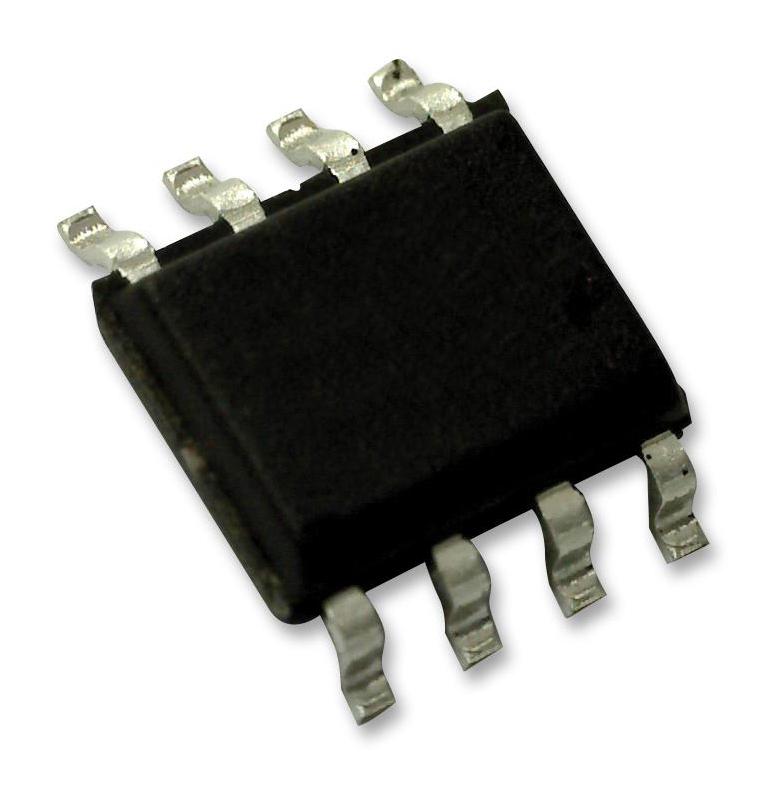

Microchip Technology LR645LGG High-Voltage Regulator
The LR645 is a high-input voltage, low-output current linear regulator suitable for off-line SMPS and noisy input applications. It accepts voltages from 15 to 450V, providing a fixed 10V output or an adjustable output range of 8 to 12V through external resistors. Designed for start-up circuits, it minimizes power dissipation after initial power-up by drawing current only during start-up. Packages include TO-92, TO-220, SOIC, and SOT-89, supporting various current and voltage configurations. It features low quiescent current, excellent regulation, and is ideal for low-power, high-voltage power regulation and noisy environments.
Microchip Technology LR645LGG High-Voltage Regulator Specifications:
- Accepts input voltages from 15 to 450V
- Output voltage: fixed 10V or adjustable 8-12V
- Output currents: up to 3.0mA continuous, peak 30mA
- Power dissipation depends on input voltage and load; e.g., at 400V and 3mA, dissipation is 1.23W
- Line regulation typically 0.1mV/V
- Ripple rejection ratio: minimum 50dB at 120Hz
- Supply quiescent current: approximately 50-150A, leakage current: 0.1pA at Vaux > 2V
- Compatible with external depletion-mode MOSFET for higher current up to 150mA
- Package options: TO-92, TO-220, SOIC, SOT-89
- Operating temperature range: -55°C to +125°C
- Dimensions vary per package type, supporting robust industrial applications
- Includes features for stable operation with minimal external components
Buy the Microchip LR645 – Reliable High-Voltage Linear Regulator for Industrial Applications
Purchase the Microchip LR645 online today to enhance your power supply designs with a versatile, high-input voltage linear regulator. Suitable for off-line SMPS start-up circuits, noisy input environments, and low-power applications, it offers adjustable output from 8 to 12V and supports high-voltage inputs up to 450V. Its low quiescent current, excellent line regulation, and multiple package options ensure reliable operation in demanding industrial settings. Enjoy fast delivery and exceptional post-sale support when you buy the LR645 online now.
Buy Microchip LR645 now and experience unmatched reliability and performance in high-voltage regulation with adjustable output options and low power dissipation.
Frequently Asked Questions
Where can I buy Microchip Technology LR645LGG?
You can click on the BUY or RFQ button to purchase LR645LGG from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part LR645LGG?
You can download the LR645LGG datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of LR645LGG?
Microchip Technology
