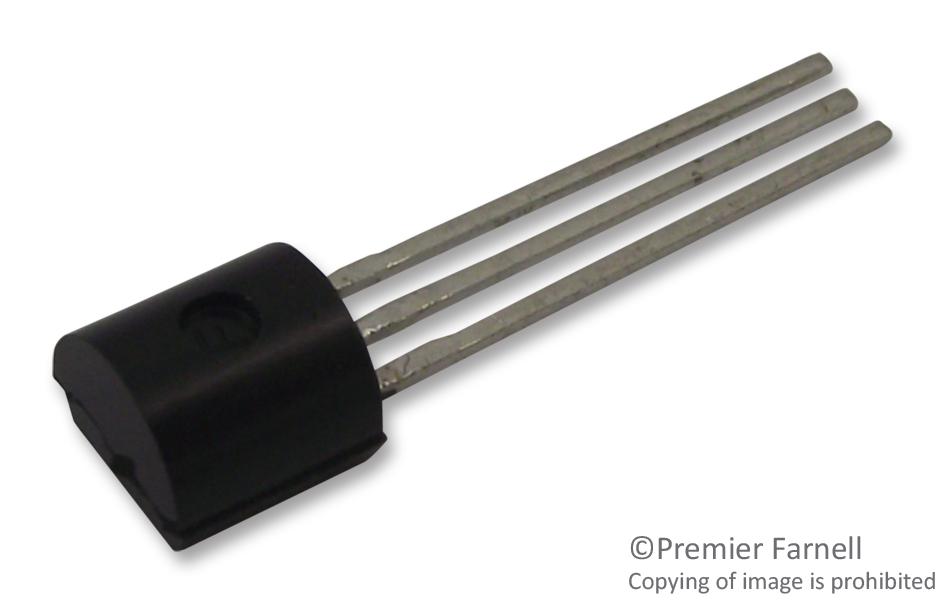

Microchip Technology LR8N3G High-Voltage Linear Regulator
LR8 is a high-voltage, adjustable linear regulator suitable for industrial controls, motor controls, and power supplies. It supports input voltages from 13.2V to 450V, with adjustable output from 1.20V to 438V by external resistors. The device provides current limiting to 20mA, temperature limiting, and a stable voltage difference of 1.20V between VOUT and ADJ pins. Available in TO-243AA, TO-252, and TO-92 packages, LR8 ensures reliable operation in off-line SMPS startup circuits and high-voltage constant current sources, with built-in thermal and current protections.
Microchip Technology LR8N3G High-Voltage Linear Regulator Specifications:
- Input Voltage Range: 13.2 - 450V
- Output Voltage Range: 1.20 - 438V, adjustable via external resistors
- Maximum Output Current: 20mA
- Output Voltage Tolerance: ±5%
- Line Regulation: 0.003 - 0.01 %/V
- Load Regulation: 14 - 3.0 %
- Ripple Rejection Ratio: 50 - 60 dB at 120Hz
- Temperature Range: -40°C to +85°C
- Junction Temperature Limit: 125°C
- Thermal Resistance: TO-92: 132°C/W, TO-243AA: 133°C/W
- Available Packages: TO-243AA (SOT-89), TO-252 (D-PAK), TO-92
- Dimensions vary per package, compliant with JEDEC standards
- Supports external bias current and bypass capacitors for stability
- Built-in overcurrent and junction temperature limiting protections
Buy the Microchip LR8 – Reliable High-Voltage Adjustable Linear Regulator for Industrial Applications
Enhance your power systems with the Microchip LR8 high-voltage adjustable linear regulator, supporting input voltages up to 450V. Its versatile design makes it ideal for off-line SMPS startup circuits, constant current sources, and industrial controls. Compact, reliable, and protected against overcurrent and thermal limits, the LR8 comes in multiple packages including TO-243AA, TO-252, and TO-92. Easy external adjustments and stability components ensure smooth operation across a wide temperature range, delivering consistent voltage regulation for demanding applications.
Order your Microchip LR8 high-input voltage linear regulator today and ensure robust performance in industrial power supply and motor control projects.
Frequently Asked Questions
Where can I buy Microchip Technology LR8N3G?
You can click on the BUY or RFQ button to purchase LR8N3G from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part LR8N3G?
You can download the LR8N3G datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of LR8N3G?
Microchip Technology
