Microchip Technology MA180024 USB Development Board

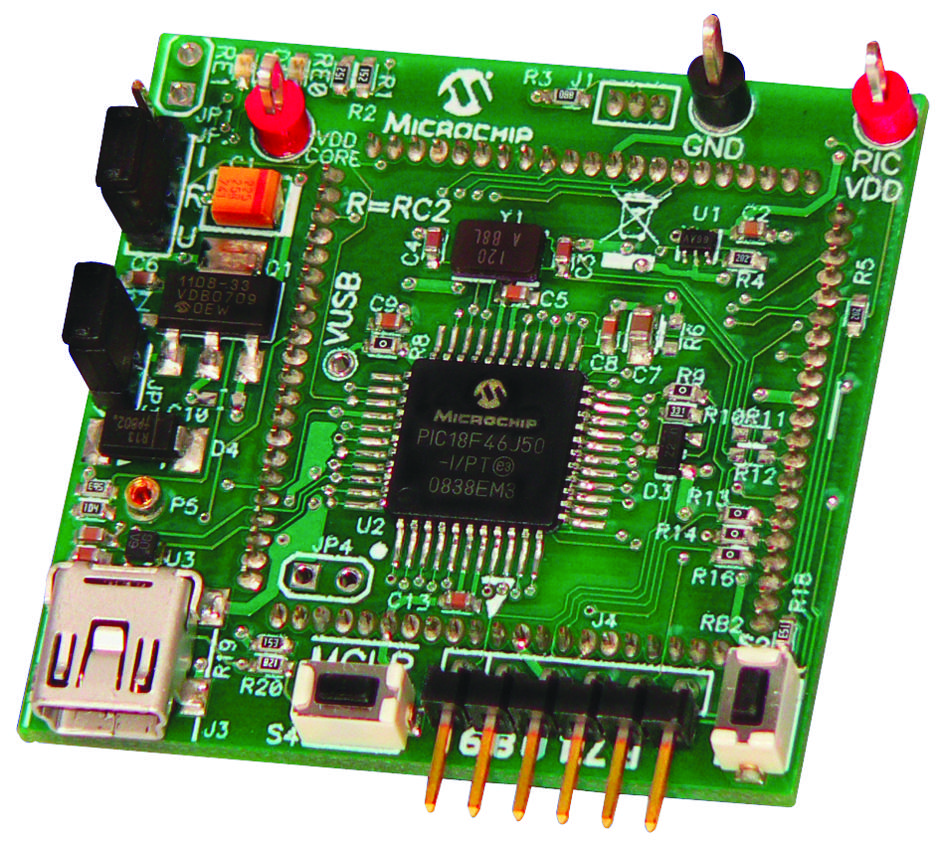

The PIC18F46J50 FS USB PIM demo board is a full-speed USB development platform featuring the PIC18F46J50 microcontroller. It operates independently or as a Plug-In Module inserted into a compatible explorer board. Equipped with two red SMT LEDs, a 12MHz crystal with internal PLL, MCP9701A temperature sensor, push button, USB Type-B mini connector for power and data, supporting full- and low-speed USB modes and up to 32 endpoints. Ideal for consumer electronics, industrial, medical, automotive, and communications applications, it includes necessary hardware, firmware projects, and interface options for versatile USB communication development.
Microchip Technology MA180024 USB Development Board Specifications:
- Microcontroller: PIC18F46J50 with USB 2.0 full-speed and low-speed support
- USB Connectivity: USB Type-B mini connector supporting full- and low-speed modes
- Operating Modes: Standalone or Plug-In Module (PIM) for explorer boards
- USB Endpoints: Supports up to 32 endpoints for various transfer types
- Crystal: 12MHz crystal with internal PLL for clock generation
- Indicators: Two red SMT LEDs for status indication
- Sensors: MCP9701A analog temperature sensor included
- Programming Interface: RJ-11 to ICSP adapter for flexible programming options
- Included Accessories: USB A to mini-B cable, ICSP adapter, demonstration board, firmware projects on CD-ROM
- Applications: Suitable for consumer electronics, industrial, medical, automotive, and communication sectors
Buy the Microchip Series USB Development Board: MA180024
Order the Microchip USB Development Board online today to accelerate your project development with versatile USB modes, onboard sensors, and flexible programming options. Designed for ease of use, it supports stand-alone operation or as a Plug-In Module for explorer boards, making it ideal for consumer electronics, industrial, medical, automotive, and communication applications. The package includes all hardware, firmware, and interface tools needed to jumpstart your USB communication projects efficiently and reliably, ensuring rapid prototyping and development.
Buy Microchip MA180024 now and experience unmatched reliability and performance for versatile USB development projects.
Frequently Asked Questions
Where can I buy Microchip Technology MA180024?
You can click on the BUY or RFQ button to purchase MA180024 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MA180024?
You can download the MA180024 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MA180024?
Microchip Technology
