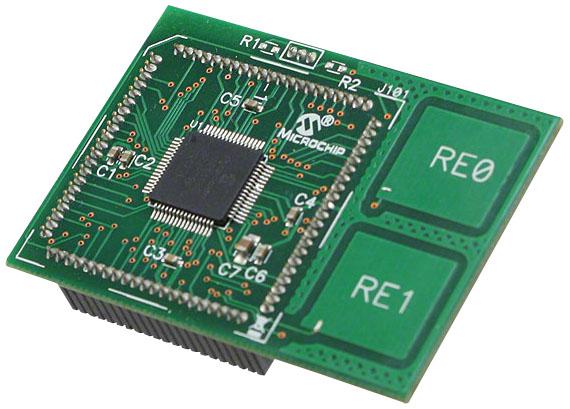

Microchip Technology MA180032 Microcontroller Module
The PIC18F66K80 Plug-in Module is an accessory for the PICDEM PIC18 Explorer Board, enabling easy evaluation of the PIC18F66K80 microcontroller family. It replaces the onboard PIC18F8722, facilitating quick testing without a new demo board. The module supports VDD between 1.8V and 5V, with customizable voltage via resistors R101 and R102. It features a 3-pin header for seamless connection, mapping most I/O pins directly while requiring jumper adjustments for UART communication. Firmware demonstrates key features, aiding development and experimentation.
Microchip Technology MA180032 Microcontroller Module Specifications:
- Supports voltage range from 1.8V to 5V with adjustable VDD via resistors R101 and R102
- Replaces onboard PIC18F8722 for quick evaluation of PIC18F66K80 family
- Features a 3-pin header for seamless module integration
- Supports I/O pin mapping with most lines directly connected
- UART pins RC6 and RC7 require jumpers for serial communication
- Firmware demonstrates key features for development and testing
- Compatible with PICDEM PIC18 Explorer Board
- Plug-in module allows easy swapping and testing of different devices
- Designed for efficient experimentation with PIC18F66K80 microcontrollers
Buy the Microchip MA180032 U–2013 Reliable Microcontroller Module for Industrial Applications
Purchase the Microchip Microcontroller Module today to enhance your development process. Designed for effortless evaluation of the PIC18F66K80 family, it seamlessly connects with the PICDEM PIC18 Explorer Board, supporting voltages from 1.8V to 5V. This plug-in module simplifies testing, contains demonstration firmware for key features, and features a user-friendly 3-pin header for easy integration. Perfect for engineers and programmers seeking reliable, flexible development tools for embedded systems, prototyping, and exploration of microcontroller capabilities.
Get Microchip MA180032 today—built for precision and long-lasting durability, ideal for microcontroller evaluation and embedded system development.
Frequently Asked Questions
Where can I buy Microchip Technology MA180032?
You can click on the BUY or RFQ button to purchase MA180032 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MA180032?
You can download the MA180032 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MA180032?
Microchip Technology
