Microchip Technology MA240020 Microcontroller Evaluation Module

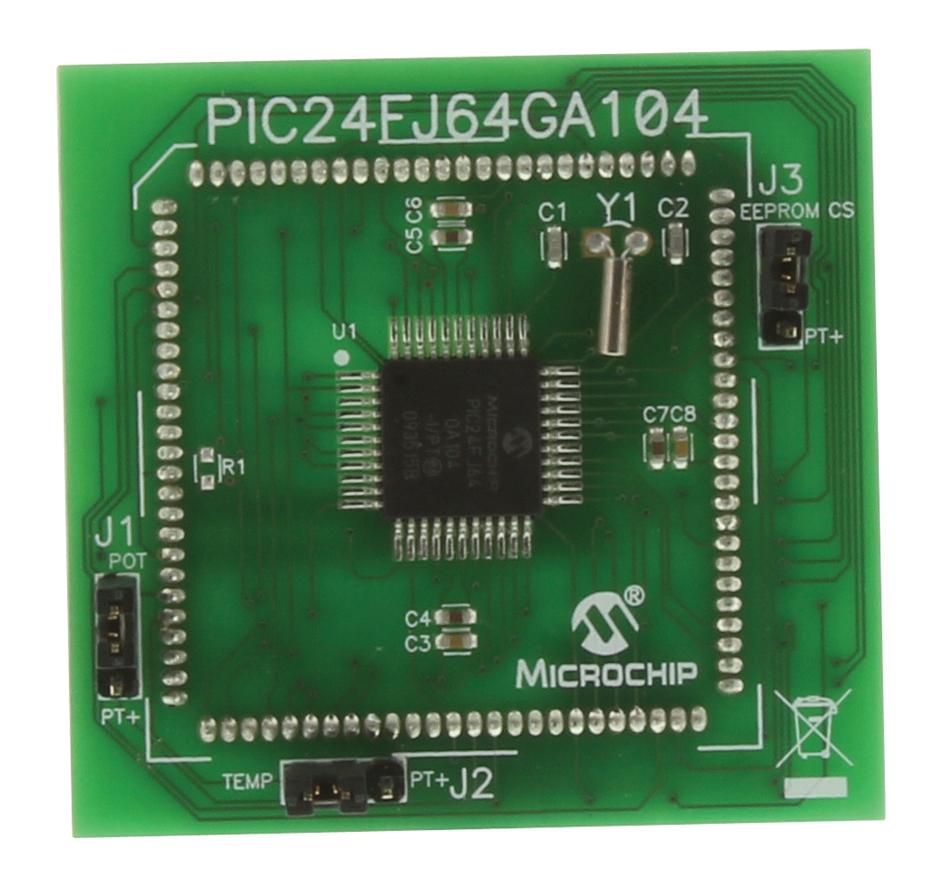

The MA240020 Plug-In Module is a compact circuit board designed for use with the Explorer 16 Development Board (DM240001) to evaluate the PIC24FJ64GA104 microcontroller. This 44-pin device features nanoWatt XLP technology and Peripheral Pin Select (PPS) capabilities, allowing it to perform all core functions on the 100-pin Explorer 16 board. The module easily plugs into the main processor socket, enabling quick switching between microcontrollers for prototyping and development. It supports up to 16 MIPS, JTAG boundary scan, flash programming, low-power modes, UART, SPI, I2C, and capacitive touch applications.
Microchip Technology MA240020 Microcontroller Evaluation Module Specifications:
- Supported Microcontroller: PIC24FJ64GA104
- Pin Count: 44-pin device
- Technology: nanoWatt XLP™ Technology
- Features: Peripheral Pin Select (PPS), JTAG boundary scan, flash programming
- Performance: Up to 16 MIPS
- Power Modes: Low-power sleep modes
- Interfaces: Two UART modules with LIN and IrDA support, SPI, I2C
- Additional: Charge Time Measurement Unit (CTMU) for capacitive touch
- Compatibility: Fits in Explorer 16 development environment
- Plug-in form factor for quick microcontroller swapping
Buy the Buy Microchip PIC24FJ64GA104 Part Number MA240020 Online
Enhance your development projects by purchasing the Microchip MA240020 Plug-In Module online. Designed for use with Explorer 16 boards, this compact circuit features nanoWatt XLP technology, PPS, UART, SPI, I2C, and capacitive touch support. Its plug-in design allows easy swapping of microcontrollers, making prototyping efficient. With up to 16 MIPS, boundary scan, flash programming, and low-power modes, it is ideal for engineers and developers seeking reliable, versatile evaluation platforms for PIC24F series microcontrollers.
Get Microchip MA240020 today—built for high-performance microcontroller evaluation with versatile communication and low-power features.
Frequently Asked Questions
Where can I buy Microchip Technology MA240020?
You can click on the BUY or RFQ button to purchase MA240020 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MA240020?
You can download the MA240020 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MA240020?
Microchip Technology
