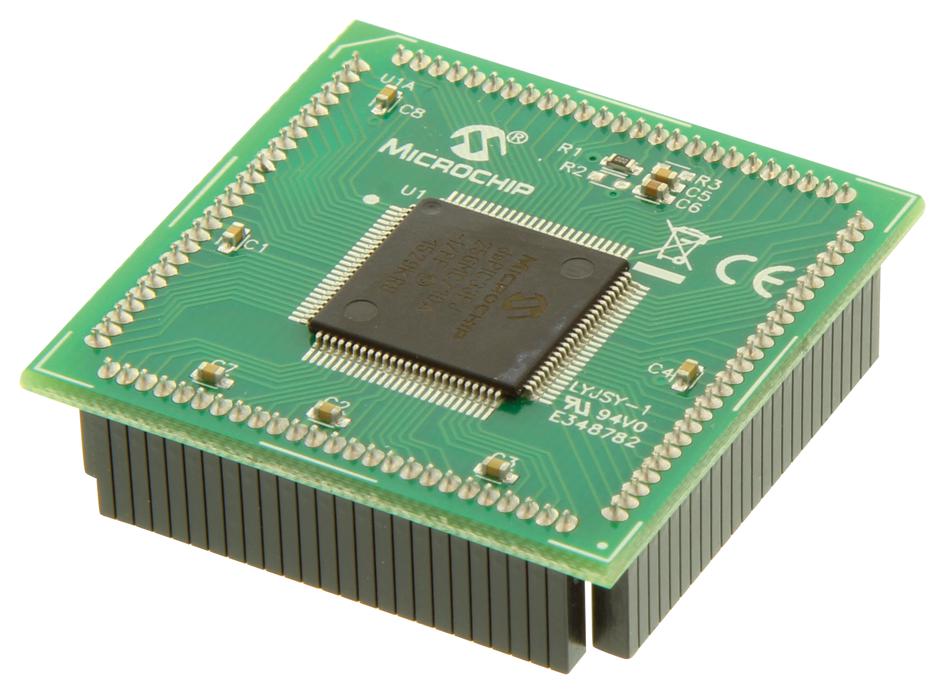

Microchip Technology MA330013 16-Bit Microcontroller
The product is a high-performance 16-bit digital signal controller family offering advanced features such as integrated DMA, multiple communication interfaces including SPI, I2C, UART, and CAN modules, extensive timer/counter capabilities, input capture, output compare, sophisticated PWM module, quadrature encoder interface, and flexible memory organization supporting code protection, self-programming, and various power modes. Designed for industrial, motor control, and audio applications, it combines a modified Harvard architecture with DSP capabilities, making it suitable for demanding embedded control systems requiring fast computation and reliable communication.
Microchip Technology MA330013 16-Bit Microcontroller Specifications:
- Device Pins: 64, 80, 100
- Memory Sizes: 64 KB to 256 KB Flash, 8 KB to 30 KB RAM
- CPU Architecture: Modified Harvard 16-bit with DSP engine
- Instruction Set: 24-bit wide, supporting MCU and DSP instructions
- Peripherals: SPI, I2C, UART, CAN, Timers, PWM, Input Capture, Quadrature Encoder
- DMA: 8-channel, supports data transfers between peripherals and RAM
- Operating Voltage: 3.0V to 3.6V
- Operating Temperature: -40°C to +85°C
- Power Modes: Sleep, Idle, Doze, Power-down with wake-up features
- Voltage Regulator: On-chip 2.5V for core logic
- Clock Options: Internal RC, External Crystal, PLL with programmable frequency
- Timer Modules: Up to nine 16-bit timers, support 32-bit mode, waveforms in edge/center-aligned modes
- Communication Modules: SPI (up to 2), I2C (up to 2), UART (up to 2), CAN (up to 2), IrDA
- Analog: Up to 32 channels, 10-bit or 12-bit ADC with simultaneous sampling support
- Security: CodeGuard, hardware-based protection, in-circuit programming and debugging
- Package Types: 64-pin, 80-pin, 100-pin TQFP with detailed mechanical specifications
- Robust Interrupt Controller: 118 vectors, 67 sources, programmable priorities, with alternate vector table support
Buy the Microchip Series DS PIC33F: 16-Bit Microcontroller with Multiple Peripherals: MA330013
Discover the power of the Microchip 16-Bit Microcontroller family model MA330013. Featuring multiple communication interfaces including SPI, I2C, UART, CAN, advanced timers, PWM generators, quadrature encoder interface, and high-speed ADC channels, this device is ideal for industrial automation, motor control, and audio processing applications. Its extensive memory options, integrated DMA, security features, and multiple power modes ensure versatile and reliable operation. Easy in-circuit programming, code protection, and support for various packages make this controller perfect for demanding embedded systems. Unlock high performance now!
Buy Microchip 16-Bit Microcontroller MA330013 now and experience unmatched reliability and performance in industrial and motor control applications.
Frequently Asked Questions
Where can I buy Microchip Technology MA330013?
You can click on the BUY or RFQ button to purchase MA330013 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MA330013?
You can download the MA330013 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MA330013?
Microchip Technology
