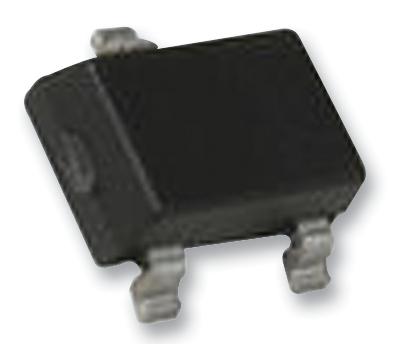

Microchip Technology MCP130T460ITT Voltage Supervisor Circuit
The MCP130T-460I/TT is a voltage supervisory circuit designed to monitor power supply voltage levels for microcontrollers. It features an active-low open-drain output that asserts a reset signal when the supply voltage drops below a specified threshold. This device holds the microcontroller in reset until the voltage stabilizes at a safe level, providing protection against brown-out conditions during power fluctuations. It can also reset the microcontroller during power loss to ensure proper operation. The circuit operates with an internal pull-up resistor of 5 kΩ, has a typical supply current of 45 µA, and offers reset threshold accuracy of ±125 mV for 5V systems and ±75 mV for 3V systems across temperature variations. It activates the reset signal when the VDD voltage falls below 1V.
Microchip Technology MCP130T460ITT Voltage Supervisor Circuit Specifications:
- Input Voltage Range: 1.0V to 5.5V
- Reset Threshold: 4.60V (VTRIP)
- Active-Low Open-Drain Reset Output
- Pull-up Resistor (MCP130 Only): 5 kΩ
- Reset Low Level: below 0.4V at 3.2mA load
- Reset High Level (MCP130 Only): VoH VDD-0.7V
- Reset Signal Hold Time: typical 350 ms
- Reset Threshold Accuracy: ±125 mV at 5V, ±75 mV at 3V
- Supply Current: 45 µA typical
- Temperature Range: -40°C to +85°C
- Package Options: TO-92 with Bondout, SOT-23-3, SOIC, SN, and other packages
Buy the Microchip MCP130T460I – Reliable Voltage Supervision for Industrial Applications
Secure your microcontroller systems with the Microchip Voltage Supervisor Circuit. Designed to monitor supply voltages from 1V to 5.5V, it ensures safe operation by asserting a reset during brown-out or power loss. Featuring an active-low open-drain output, a 5 kΩ pull-up resistor, and precise threshold levels, this device guarantees reliable performance under varying conditions. Ideal for industrial applications, it operates across -40°C to +85°C, providing robust power protection with easy online purchase options for seamless integration into your design.
Buy Microchip MCP130T-460I now and experience unmatched reliability and performance in microcontroller power monitoring.
Frequently Asked Questions
Where can I buy Microchip Technology MCP130T460ITT?
You can click on the BUY or RFQ button to purchase MCP130T460ITT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP130T460ITT?
You can download the MCP130T460ITT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP130T460ITT?
Microchip Technology
