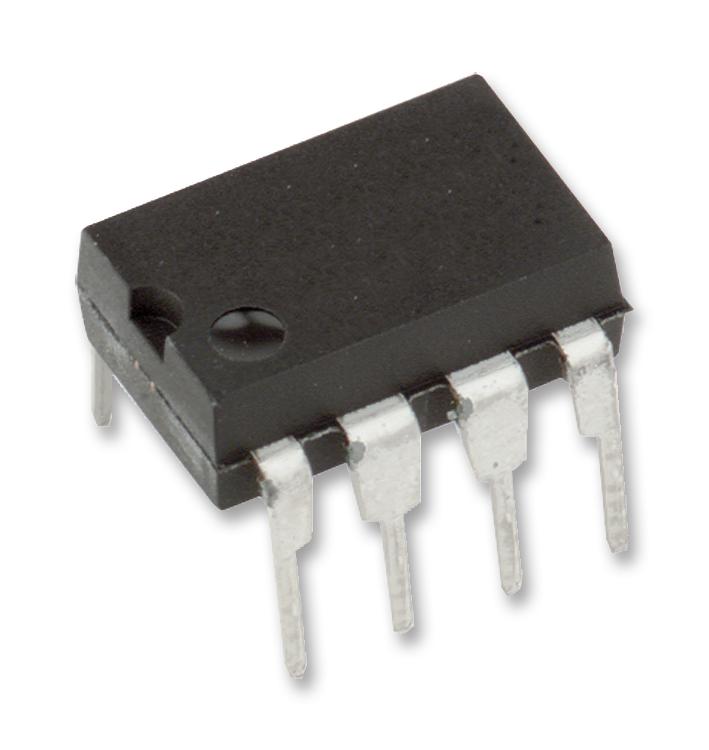

Microchip Technology MCP14E4EP High-Speed Power MOSFET Driver
The MCP14E4 dual high-speed power MOSFET driver operates from 4.5V to 18V and delivers up to 4.0A peak output current. It features independent enable controls for each output, low shoot-through/cross-conduction current, and high capacitive load drive capability (2200 pF in 15 ns). Its space-saving 8-pin package options include DFN, PDIP, and SOIC, with a temperature range from -40°C to +125°C. The device provides fast switching times, latch-up protection, and ESD immunity, making it suitable for switch mode power supplies, motor drives, and line drivers.
Microchip Technology MCP14E4EP High-Speed Power MOSFET Driver Specifications:
- Peak Output Current: 4.0A
- Supply Voltage Range: 4.5V to 18V
- Capacitive Load Drive Capability: 2200 pF in 15 ns, 5600 pF in 26 ns
- Switching Delay: 50 ns (typical)
- Temperature Range: -40°C to +125°C
- Package Types: 8-Lead DFN, PDIP, SOIC
- Enable Control: Separate active high enable inputs
- Output: CMOS push-pull capable of sourcing/sinking 4A
- LP Protection: Latch-up resistance up to 1.5A reverse current
- ESD Protection: Up to 4 kV
- Hysteresis in input thresholds: 0.10 to 0.60V
- Input Voltage Compatibility: TTL/CMOS (2.4V to 18V)
Buy the Microchip MCP14E4 U– Reliable MOSFET Drivers for Industrial Applications
Enhance your power management system with the MCP14E4 dual high-speed MOSFET driver, capable of delivering 4A peak current. Operating from 4.5V to 18V, it features independent enable controls, low shoot-through current, and quick switching times. Suitable for switch mode power supplies, motor drives, and line drivers, its compact package options and broad temperature range make it ideal for industrial automation and embedded control applications. Fast, reliable, and protected against latch-up and electrostatic discharges, it's your go-to solution for efficient power control.
Buy Microchip MCP14E4 now and experience unmatched reliability and performance in high-speed power switching for industrial needs.
Frequently Asked Questions
Where can I buy Microchip Technology MCP14E4EP?
You can click on the BUY or RFQ button to purchase MCP14E4EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP14E4EP?
You can download the MCP14E4EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP14E4EP?
Microchip Technology
