Microchip Technology MCP150120ESN Voltage Reference
The MCP1501 is a high-precision buffered voltage reference designed for industrial, medical, and data acquisition applications. It offers excellent temperature stability with a maximum tempco of 50 ppm/°C, and features low input current of 140 pA. The device provides stable output voltages in the range of 1.024V to 4.096V with low output noise (<0.1 UVp.p). It is available in various packages including 6-Lead SOT-23, 8-Lead SOIC, and WDFN, suitable for precision measurement, high-resolution data converters, and battery-powered systems, ensuring reliable performance over wide temperature and supply variations.
Microchip Technology MCP150120ESN Voltage Reference Specifications:
- Maximum Temperature Coefficient: 50 ppm/°C
- Operating Temperature Range: -40°C to +125°C
- Input Bias Current: 140 pA typical
- Output Voltage Range: 1.024V to 4.096V
- Output Noise (10Hz to 10kHz): < 0.1 UVp.p
- Line Regulation: 50 ppm/V maximum
- Load Regulation: 40 ppm/mA maximum
- Supply Voltage Range: 1.65V to 5.5V
- Package Types: 6-Lead SOT-23, 8-Lead SOIC, WDFN
- Output Voltage Hysteresis: Measured after temperature cycling
- Dropout Voltage: Typically 200 mV at 5 mA load
- Temperature Range: -40°C to +125°C
- Low typical operating current: 140 pA
- Output Voltage Accuracy: ±0.1%

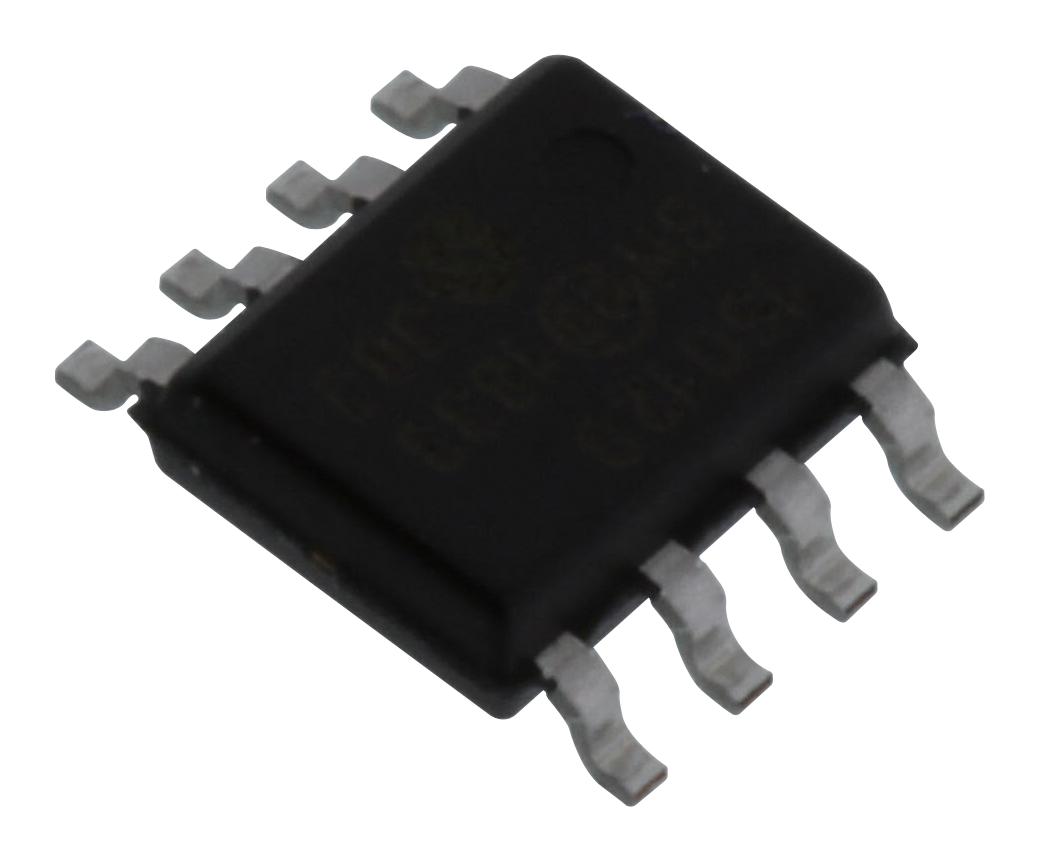

Buy the Microchip MCP1501 – Reliable Voltage Reference for Industrial Applications
Order the Microchip MCP1501 voltage reference online today to ensure your industrial, medical, or data acquisition systems operate with high accuracy. This low-noise, high-stability device offers outstanding temperature coefficient, low power consumption, and robust performance in wide temperature ranges. Available in various compact packages, it is perfect for high-resolution ADCs, precision data systems, and portable devices. Secure your supply chain with fast shipping and get your system running smoothly with this reliable voltage reference from Microchip.
Buy Microchip MCP1501 now and experience unmatched reliability and performance in your precision measurement projects.
Frequently Asked Questions
Where can I buy Microchip Technology MCP150120ESN?
You can click on the BUY or RFQ button to purchase MCP150120ESN from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP150120ESN?
You can download the MCP150120ESN datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP150120ESN?
Microchip Technology
